Electric Hydraulic Tandem Lifting Table, 17,600 lb. Capacity, 118 1/2in x 47 1/7in

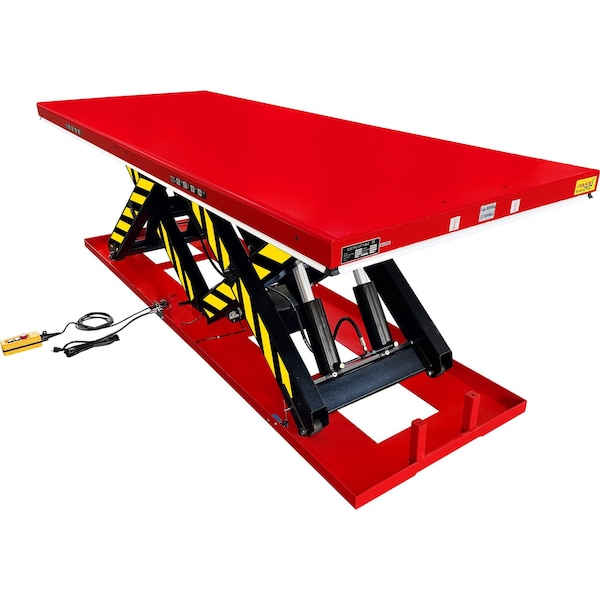

The PAKHW8000D is a heavy-duty solution designed to improve workplace safety and efficiency in warehouses, manufacturing facilities, and industrial environments. Built to reduce worker strain, this lift table raises heavy loads to a comfortable working height, minimizing bending and lifting injuries while improving productivity. Featuring a tandem double scissor design, the PAKHW8000D provides robust support for extremely heavy loads, with a total load capacity of 17,600 lbs. The 118 1/2in x 47 1/7in platform accommodates large machinery, pallets, and equipment, while the lift height ranges from 9.35in to 39.45in, offering flexible working heights for a variety of tasks. Captured rollers reduce pinch points and risk of injury, ensuring safe and smooth lifting. The lift table is powered by a 3 HP, 110V single-phase Canadian CAS-certified motor and hydraulic pump assembly, delivering reliable, long-lasting performance for continuous-duty applications. The hydraulic pump station includes a fan and temperature sensor controller to maintain stable operation during extended use. Operators control the lift via a hand-held push-button pendant with an 8-foot cord and aviation plug, with optional foot pedal or wireless control configurations available. Safety is a top priority. The lift table features a four-sided electric toe guard with built-in wiring to prevent accidental injury and a mechanical explosion-proof hydraulic cylinder, with an optional electromagnetic cylinder available. The red powder-coated steel frame is chip-resistant and engineered to withstand wear and corrosion in demanding industrial environments. Key Features Heavy-duty tandem double scissor design with 17,600 lb load capacity Platform dimensions: 118 1/2in L x 47 1/7in W; lift range: 9.35in-39.45in 3 HP, 110V single-phase motor with hydraulic pump for reliable continuous operation Hand-held push-button pendant with 8-foot cord; optional wireless or foot pedal control Four-sided electric toe guard and captured rollers for enhanced operator safety Mechanical explosion-proof hydraulic cylinder; optional electromagnetic upgrade Red powder-coated steel frame resistant to wear and corrosion Smooth lifting operation with up-speed of 58-63 seconds Dimensions & Weight Package dimensions: 120in x 49in x 15in Net weight: 1,683 lbs; shipping weight: 1,727 lbs
