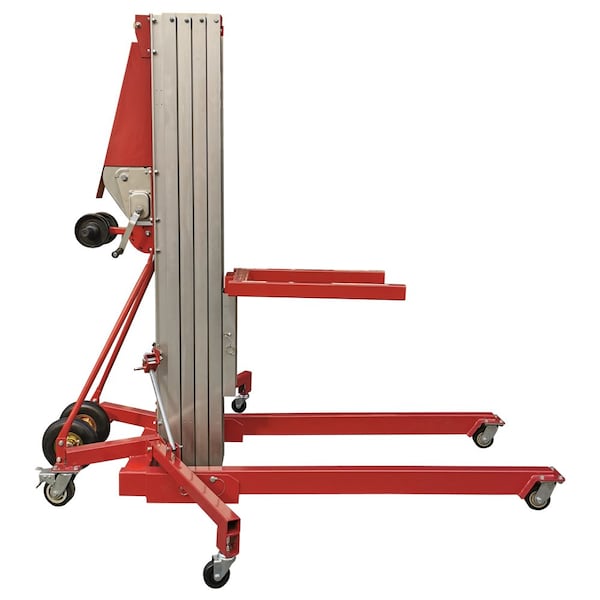

Manual Material Lift, Contractor Lift, 550 lb. Cap., 21ft Height
Mfr # PAKLGA20
Zoro # G014728522
product price:
$
4,125.99
/ea
Additional $210.00 delivery surcharge applies per item.
Key Features
Load Capacity
550 lb
Lift Mechanism
304 Stainless Steel Cable 15/64"
Lifting Height Max.
21ft 3-9/10 in
Rear Caster Dia.
5 in (Swivel With Break)
Fork Width
23-1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PAKLGA20
- Zoro #
- G014728522
- UPC #
- -
- Country of Origin
- China
Dimensions
- Lifting Height Max.
- 21ft 3-9/10 in
- Rear Caster Dia.
- 5 in (Swivel With Break)
- Fork Width
- 23-1/2 in
- Fork Length
- 27-1/2 in
- Height Stowed
- 78-1/2 in
- Front Caster Dia.
- 4 in (Swivel)
Details
- Load Capacity
- 550 lb
- Item
- Manual Material Lift, Contractor Lift
- Lift Mechanism
- 304 Stainless Steel Cable 15/64"
Description
The manually operated material lift for construction and industrial applications. The Contractor Lift is an ideal tool for construction firms and every kind of contractor. Well suited for industrial applications and HVAC installations. This unit can be easily operated by one person. Max. Working Heiht: 21ft 3-9/10 in; Height - stowed: 78-1/2 in; Standard base Length - stowed: 29 in; Length - operating: 80-1/2 in; Width - stowed: 31-1/2 in; Width - with stabilizers lowered: 78-5/8 in; Ground clearance: 2 in; Lift Mechanism: 304 Stainless Steel Cable 15/64"; Load capacity: 550 lb; Fork Length: 27-1/2 in; Fork Width: 23-1/2 in; Front Caster: 2 Swivel 4 in; Rear Caster: 2 Swivel With Break 5 in; Net Weight - Standard:405 lb
- • Special made matel cover prevents operator facing exposed cable
- • 550 lbs loading capacity
- • Large 15/64" (6mm) stainless steel load cable
- • One-speed winch for lifting and lowering
- • Forks remove by pulling plunger pins or reversed for added height
- • Lifts load to a maximum height of 21’ 3-9/10" (with forks up)
- • 10" rough terrain wheels help to roll into trucks or vans Ideal for compact storage
