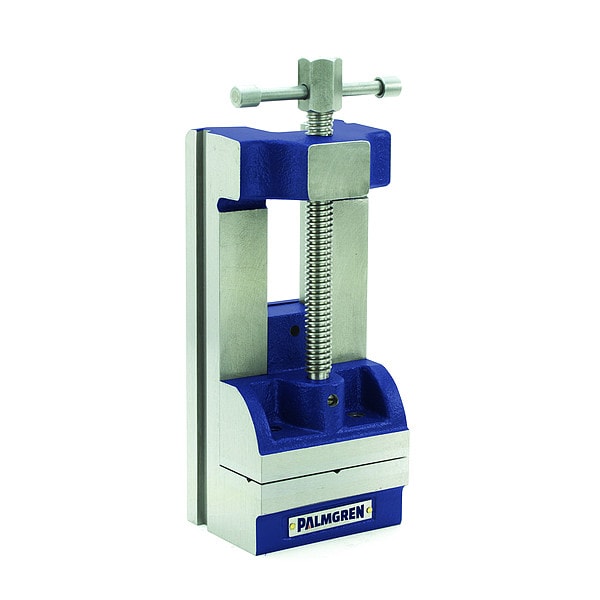

2 7/16 in Light Duty Machine Vise with Fixed Base
Mfr # 9612251
Zoro # G1329684
product price:Â
$
114.99
/ea
Free Shipping & Returns
Key Features
Base Type
Fixed
Duty Rating
Light Duty
Overall Height
3 in
Overall Length
9 in
Features
All Vises can be Mounted on the Base, Either Side or Placed on End for General use, Center of Base is Open for Holding Work Through the Body of Vise
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9612251
- Zoro #
- G1329684
- UPC #
- 726896122519
- Country of Origin
- China
- Item
- Machine Vise
- Base Type
- Fixed
- Duty Rating
- Light Duty
- Features
- All Vises can be Mounted on the Base, Either Side or Placed on End for General use, Center of Base is Open for Holding Work Through the Body of Vise
- Jaw Plate
- 0.002 in
- Max. Opening
- 3"
- Bed/Base
- 0.001 in
- Type
- Drill Press
- Jaw Deflection
- .0.002 in At 2000 lbs
- Jaw Opening (In.)
- 3 in
- Jaw Material
- Steel
- Jaw Deflection - Maximum
- 0.002 in
- Bed/Base Parallel Tolerance - Maximum
- 0.0001 in
- Jaw Opening - Maximum
- 3 in
- Compatible Machinery
- Drill Press
- Jaw Face Type
- Smooth, V-Grooved
- Machine Vise Type
- Standard
- Lead Screw Type
- V-Thread
- Clamping Force - Maximum
- 500 lbf
Description
Machine Vise, Drill Press, Jaw Width (In.) 2 7/16 in, Jaw Opening (In.) 3 in, Throat Depth (In.) 1 1/2 in, Overall Length (In.) 7-1/2, Overall Height (In.) 2-9/16, Clamping Force (Lb.) -, Jaw Deflection .0.002 in At 2000 lbs, Jaw Plate 0.002 in, Bed/Base 0.001 in, All Vises can be Mounted on the Base, Either Side or Placed on End for General use, Center of Base is Open for Holding Work Through the Body of Vise
