  11. 5" Standard Duty Multi-Jaw Rotating Vise with Swivel Base

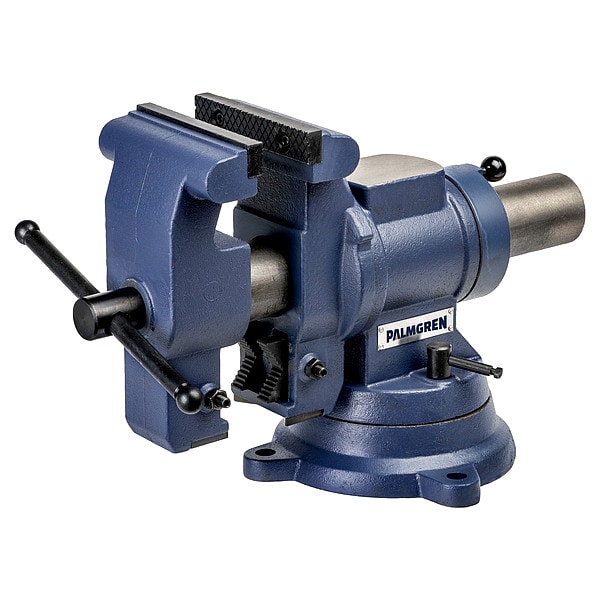

Palmgren 5" Standard Duty Multi-Jaw Rotating Vise with Swivel Base 9629503 - main

5" Standard Duty Multi-Jaw Rotating Vise with Swivel Base

  • Mfr # 9629503

  • Zoro # G4562187

product price: $416.99
/ea
Free Shipping & Returns

Key Features

Base Type
Swivel
Jaw Width
5"
Duty Rating
Standard Duty
Overall Height
10 5/8 in
Overall Length
18 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9629503
Zoro #
G4562187
UPC #
081834295039
Country of Origin
China

Dimensions

Jaw Width
5"
Overall Height
10 5/8 in
Overall Length
18 3/4 in
Throat Depth
3 1/2 in
Jaw Width Range
3 in to 5 in
Overall Width
10 in
Throat Depth - Vises
3 1/2 in
Throat Depth Range
3 in to 5 in
Jaw Width - Vises
5 in
Mounting Hole Dia.
3/8 in
Jaw Face Width
5 in
Pipe Diameter - Minimum
1/4 in
Mounting Hole Diameter
3/8 in
Pipe Diameter - Maximum
3 1/2 in

Details

Item
Multi-Jaw Rotating Vise
Base Type
Swivel
Duty Rating
Standard Duty
Features
Anvil on the Vise Provides a Convenient Work Surface, Bolt Lugs on Base for Secure Mounting, Made from FC25 Fine Grain Cast Iron, Parallel Jaws, Pipe Jaws and V-Jaws, Trapezoidal-Thread Lead Screw
Max. Opening Range
3 in to 5 in
Item - Vises
Multi-Jaw Rotating Vise
High Visibility
No
Max. Opening - Vises
4 in
Pipe Capacity
1/4" to 3-1/2"
Max. Opening
4"
Jaw Face
Serrated
Swivel Angle - Vises
360 Degrees
Jaw Type
Replaceable
Product Grouping - Vises
Bench Vises
Deep Throat
No
Body Casting
30,000 psi
Pipe Jaw Included
Yes
Body Casting Tensile Strength
30,000 psi
Quick-Acting
No
Pipe Capacity - Vises
1/4 in to 3-1/2 in
Number of Mounting Points
4
Material
Cast iron
Number of Lock Down Bolts
2
Base Type - Vises
Swivel
Jaw Face - Vises
Serrated
Reversible
No
Rotating Angle
360 Degrees
Swivel Angle
360 Degrees
Duty Rating - Vises
Standard Duty
Material -Vises
Cast Iron
Jaw Material
Steel
High-Visibility
No
Jaw Attachment Type
Replaceable
Number of Mounting Holes
4
Base Swivel Angle
360 Degrees
Body Tensile Strength
30,000 psi
Jaw Face Type
Serrated
Jaw Pad Material
Steel
Base Material
Iron
Spindle Type
Enclosed
Jaw Opening - Maximum
4 in

Description

Multi-Jaw Rotating Vise, Body Tensile Strength 30,000 psi, Spindle Type Enclosed, Jaw Face Width 5 in, Jaw Opening - Maximum 4 in, Throat Depth 3 1/2 in, Jaw Face Type Serrated, Jaw Pad Material Steel, Pipe Diameter - Maximum 3 1/2 in, Base Material Iron, Base Swivel Angle 360 Degrees , Base Type Swivel
