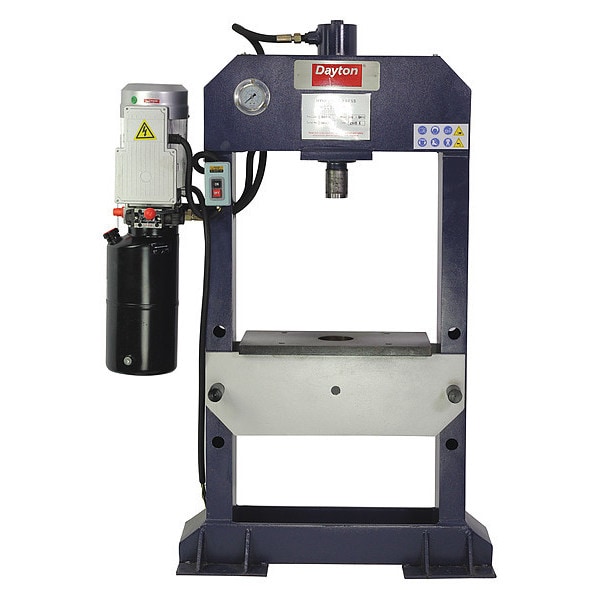

Electric Hydraulic Press, 10 Ton, Small Benchtop Shop Press

  • Mfr # 9661612
  • Zoro # G7126712
product price:
$
4,435.99
/ea
Additional $245.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
10 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Hydraulic Electric
Base Length
30 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9661612
Zoro #
G7126712
UPC #
-
Country of Origin
China

Dimensions

Base Length
30 in
Base Width
24 in
Overall Height
80 in
Working Width
19-1/4"
Working Height
35"
Total Height
80"
Bed Height
40"
Hose Length
5 ft 6 in
Total Width
40"
Height with Screw Extension
80"
Overall Width
40 in
Base Depth
30 in
Hydraulic Hose Length
66 in
Press Bed Width
19 1/4 in
Press Bed Depth
6 5/8 in

Details

Frame Capacity
10 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Hydraulic Electric
Cylinder Type
Single Acting
Features
Bolted Channel Frame;Economical
Application
Bending, Clamping, Forming, Pressing Bearings, Punching, Staking, Straightening
Cylinder
Fixed
Includes
Table Plates, V-Blocks
Pump
Hydraulic
Reservoir Capacity
2 gal
Item
Hydraulic Press
Voltage
230V
Phase
Single
Stroke
6-1/4 in
Pressure
10 tons
Distance Between Uprights
19 1/4 in
Material - Machining
Iron
Operating Pressure
10 Tonf
Ram-to-Table Distance - Maximum
18 1/8 in
Frame Material
Iron
Capacity
10 ton
Pump Model Number
Hydraulic
Horsepower
3 hp
Ram-to-Table Distance - Minimum
7 5/8 in
Operation
Electric

Description

The PALMGREN 9661612 Hydraulic Press is a 10-ton electric-powered H-frame press designed for bending, forming, clamping, punching, staking, and straightening operations. It operates using a single-phase, 230V hydraulic system with a 3 hp motor and a 2-gallon reservoir. The press has a bolted iron frame with a fixed, single-acting cylinder that provides consistent force through a 6-1/4 inch stroke. It includes table plates and V-blocks for setup flexibility.

Key Features:

  • Press Type: Electric hydraulic H-frame press
  • Capacity: 10 ton
  • Cylinder Type: Single-acting fixed hydraulic cylinder
  • Stroke Length: 6-1/4 in
  • Pump Type: Hydraulic electric with 3 hp motor
  • Frame Material: Iron with bolted channel design
  • Voltage: 230V, single phase
  • Reservoir Capacity: 2 gal
  • Working Width: 19-1/4 in; bed width 19-1/4 in; bed depth 6-5/8 in
  • Ram-to-Table Distance: 7-5/8 in minimum to 18-1/8 in maximum
  • Overall Dimensions: 80 in H × 40 in W × 30 in D
  • Includes: Table plates and V-blocks
  • Applications: Bending, clamping, forming, pressing bearings, punching, staking, and straightening
