Shop PALMGREN

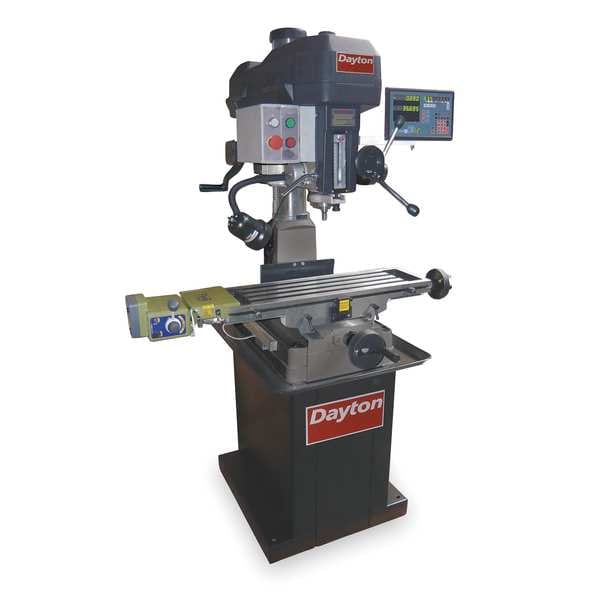

Mill Drill Machine, Manual, 1ph, 120/240V

  • Mfr # 2LKR1

  • Zoro # G7448542

product price:
$
10,704.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Swing
16 in
Voltage
120/240V
RPM
1725
Drilling Capacity Steel
1 1/2 in
Spindle Speed
150 to 3000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2LKR1
Zoro #
G7448542
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Quill Dia.
3 in
Column Dia.
4-1/2 in
Overall Depth
32 in
Overall Width
32 in
Overall Height
84 in
T-Slot Width
5/8 in
Column Diameter
4 1/2 in
Quill Diameter
3 in
Table Work Surface - Width
32 3/8 in
Table Work Surface - Depth
9 1/2 in

Details

Swing
16 in
Voltage
120/240V
RPM
1725
Item
Mill Drill
Drilling Capacity Steel
1 1/2 in
Spindle Speed
150 to 3000 rpm
Face Milling Capacity
3 in
Motor HP
1 1/2 hp
Phase
Single
Longitudinal Travel
23 in
Cross Travel
7 in
Amps
23.0/11.5
End Milling Capacity
3/4 in
Spindle to Table
17"
Features
2-Axis Digital Readout, Cast Iron Construction, Depth Gauge, Fine Feed Handwheel with 0.001 in Graduations with Quill Lock, Longitudinal Table Powerfeed, Precision Ground Work Table, Taper Roller Spindle Bearings
Corded/Cordless
Corded
Spindle
R8
Hz
60
Corded/Banded
Corded
Includes
(6) 1/8 in to 3/4 in x 8ths R8 Collet Set, 2 1/2 in Face Mill Cutter with Arbors, 2 in Chuck, R8/MT3 Arbor Adapter, Way Covers, Work Light
T-Slots
5/8"
Operation
Manual
Spindle Travel
5"
Table Work Surface
9-1/2 in x 32 in
Spindle Taper
R8
Milling and Drilling Machine Product Grouping
Mill/Drill Machines
Graduations
0.001 in
Number of T-Slots
4
Power Source
Corded
Frequency
60 Hz
Motor Horsepower
1 1/2
Speed
1725 rpm
Maximum Longitudinal Travel
23 in
Includes Lights
Light Included
Includes Power Downfeed
Power Downfeed Not Included
Number of Spindle Speeds
12
Head Material
Cast Iron
Column Shape
Round
Includes Digital Readout
Digital Readout Included
Spindle Speed - Minimum
150 RPM
Swing Measurement
16 in
Motor Speed - Maximum
1,725 RPM
Maximum Spindle Travel
5 in
Included Powerfeeds
X-Axis Powerfeed
Milling Head Drive
Belt Drive
Maximum Cross Travel
7 in
Speed Control
Fixed
Horsepower
1 1/2 hp
Includes Chuck
Chuck Included
Spindle to Table Distance
17 in
Spindle Speed - Maximum
3,000 RPM

Description

Mill Drill, Phase Single, Swing 16 in
