  5. Ceiling Bathroom Fan, 110/130/150 cfm cfm, 6 in Duct Dia., 120V AC, Without Light

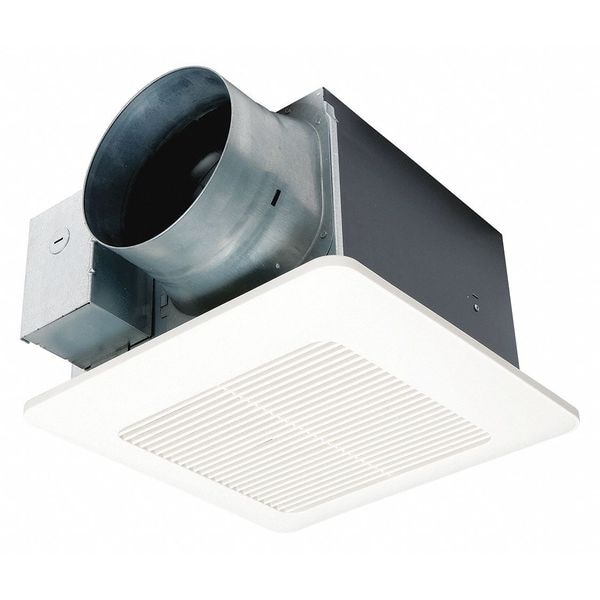

Panasonic Ceiling Bathroom Fan, 110/130/150 cfm cfm, 6 in Duct Dia., 120V AC, Without Light FV-1115VQ1 - main

Ceiling Bathroom Fan, 110/130/150 cfm cfm, 6 in Duct Dia., 120V AC, Without Light

  • Mfr # FV-1115VQ1

  • Zoro # G3783013

product price:  $245.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Mounting Location
Ceiling
CFM @ 0.100-In. SP
110/130/150 cfm
Phase
1
Watts
6.8/9.0/11.8 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FV-1115VQ1
Zoro #
G3783013
UPC #
885170324947
Country of Origin
Mexico

Dimensions

Duct Dia.
6 in
Grille Length
13 in
Housing Width
10 1/4 in
Grille Width
13 in
Height (In.)
7-1/2"
Housing Length
10 1/4 in
Width (In.)
10-1/4"
Housing Height
7 1/2 in
For Cut-Out Length
10 1/2 in
Profile Width Family
Single-Wide
Overall Height
7 3/8 in
For Cut-Out Width
10 1/2 in
Overall Width
10 1/4 in
Overall Depth
10 1/4 in
Duct Diameter
6 in
Profile Height Family
Medium

Details

Voltage
120V AC
Mounting Location
Ceiling
CFM @ 0.100-In. SP
110/130/150 cfm
Phase
1
Watts
6.8/9.0/11.8 W
Amps
0.12/0.16/0.19
Housing Material
Zinc; Aluminum; Magnesium
Number of Speeds
1
Sones @ 0.100-In. SP @ 5 Ft.
0.3/0.3/0.3
Lighted
Without Light
Heater
Without Heater
Motion Sensing
No
Profile
Medium
Discharge
Vertical
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Night-Light
No
Standards
cUL Listed, ENERGY STAR, HVI Certified, UL Listed
Item
Bathroom Fan
Grille Material
Polypropylene
Green Certification or Other Recognition
ENERGY STAR
Requires
Ductwork
Nominal RPM
636/671/698 RPM
Hz
60 Hz
Humidity Sensing
No
Motor Type
DC Motor
Motor Enclosure
Totally Enclosed
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.100 in SP
110 cfm, 130 cfm, 150 cfm
Frequency
60 Hz
Blower Wheel Curve
Forward
Duct Shape
Round
Maximum Noise Level
0.7 sones
Discharge Direction
Vertical
Noise Level @ 0.100 in SP @ 5 ft
0.3 sones
Mounting Orientation
Vertical
Sensor Type
None
Full Load Current
0.12 A, 0.16 A, 0.19 A, 0.2 A, 0.25 A, 0.31 A
Includes Grill
Yes
Nameplate Voltage
120V AC
Exhaust Airflow @ 0.250 in SP
110 cfm, 131 cfm, 152 cfm
Motor Speed
768 RPM, 867 RPM, 1,016 RPM, 1,097 RPM, 1,185 RPM, 1,268 RPM, 1,342 RPM, 1,480 RPM
Vent Design
Ducted
Includes Light Bulbs
No
Noise Level @ 0.250 in SP @ 5 ft
0.7 sones

Description

Bathroom Fan, Discharge Direction Vertical, Duct Diameter 6 in, Duct Shape Round, Housing Material Zinc; Aluminum; Magnesium, Heater Without Heater, Mounting Location Ceiling, Exhaust Airflow @ 0.100 in SP 110 cfm, 130 cfm, 150 cfm, Maximum Noise Level 0.7 sones, Noise Level @ 0.100 in SP @ 5 ft 0.3 sones, Number of Speeds 1, Overall Depth 10 1/4 in, Overall Height 7 3/8 in, Overall Width 10 1/4 in, Lighted Without Light, Phase 1

Restrictions

This item has been restricted from sale in the following states: MA
