  9. In-Line Fan, 60 Hz, Insulated, 36W
This item is Discontinued.

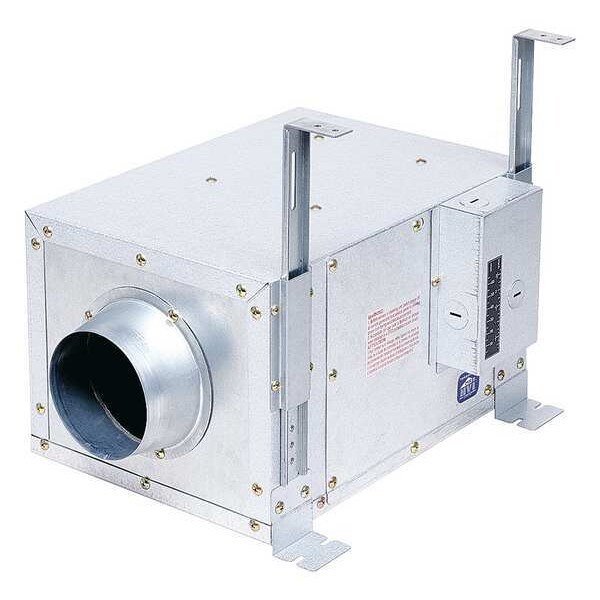

Panasonic In-Line Fan, 60 Hz, Insulated, 36W FV-10NLF1E

In-Line Fan, 60 Hz, Insulated, 36W (Discontinued)

  • Mfr # FV-10NLF1E
  • Zoro # G6082641
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FV-10NLF1E
Zoro #
G6082641
UPC #
885170266193
Country of Origin
China

Dimensions

Dimension B
9 7/16 in
Grille Length
13 in
Dimension A
13 3/8 in
Dimension F
5/16 in
Housing Height
13 3/8 in
Dimension D
7 7/8 in
Housing Width
13 3/8 in
Duct Dia.
4 in
Grille Width
13 in
Housing Length
7 7/8 in
Dimension E
1 1/2 in
Overall Depth
9 1/2 in
Overall Height
12 5/8 in
Duct Diameter
4 in
Overall Width
13 3/8 in
Profile Width Family
Single-Wide
Profile Height Family
Low
Overall Dimensions H x W x D
12 5/8 in x 13 3/8 in 9 1/2 in

Details

Item
In-Line Ceiling Exhaust Fan
Voltage
120V AC
Mounting Position
Horizontal or Vertical
Motor RPM
1590
Green Certification or Other Recognition
ENERGY STAR
Motor Type
AC Motor
Watts
36 W
Grille Material
Polypropylene
CFM @ 0.100-In. SP
120
Includes
Mounting Brackets
Motor Enclosure
Totally Enclosed
Hz
60
Housing Material
Steel
Standards
ASHRAE 62.2, CA Title 24, EarthCraft, LEED, WA Ventilation Code
Number of Speeds
3
Sensor Type
None
Mounting Orientation
Horizontal, Vertical
Exhaust Airflow @ 0.400 in SP
89 cfm
Duct Shape
Round
Frequency
60 Hz
Vent Design
Ducted
Motor Speed
1,510 RPM
Includes Grill
Yes
Exhaust Airflow @ 0.200 in SP
120 cfm
Wattage
36 W
Nameplate Voltage
120V AC
Full Load Current
0.21 A, 0.22 A, 0.24 A
Exhaust Airflow @ 0.100 in SP
120 cfm
Mounting
Adjustable Mounting Brackets
Motor Output Power
18 3/5 W
Nominal Voltage
115V AC - Single Phase
Discharge Direction
Horizontal/Vertical
Exhaust Airflow @ 0.100 in SP - Range
0 to 249 cfm
Fan Wattage
36 W

Description

In-Line Ceiling Exhaust Fan, Discharge Direction Horizontal/Vertical, Duct Diameter 4 in, Duct Height Not Applicable, Duct Width Not Applicable, Duct Shape Round, Nameplate Voltage 120V AC, Exhaust Airflow @ 0.100 in SP 120 cfm, Exhaust Airflow @ 0.200 in SP 120 cfm, Exhaust Airflow @ 0.400 in SP 89 cfm, Fan Wattage 36 W, Frequency 60 Hz, Full Load Current 0.21 A, 0.22 A, 0.24 A, Housing Material Steel, Motor Output Power 18 3/5 W, Motor Type AC Motor
