  5. wall Bathroom Fan, 70 cfm cfm, 8 in Duct Dia., 120V AC, No

This item is Discontinued.

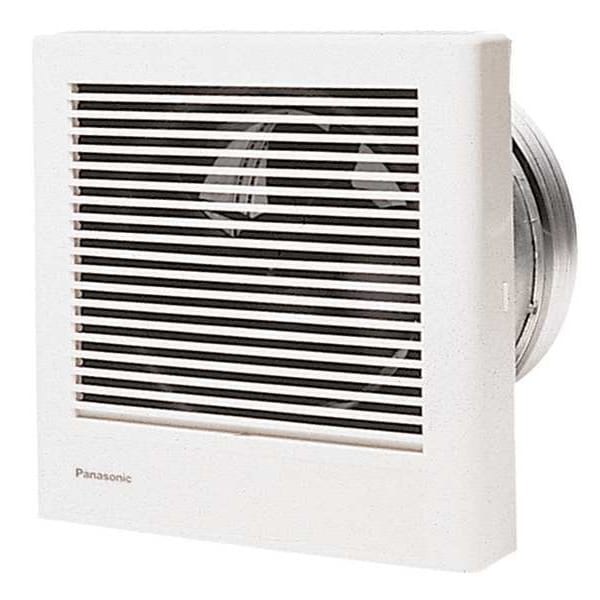

Panasonic wall Bathroom Fan, 70 cfm cfm, 8 in Duct Dia., 120V AC, No FV-08WQ1

wall Bathroom Fan, 70 cfm cfm, 8 in Duct Dia., 120V AC, No (Discontinued)

  • Mfr # FV-08WQ1
  • Zoro # G6125122
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FV-08WQ1
Zoro #
G6125122
UPC #
092281137674
Country of Origin
Japan

Dimensions

Duct Dia.
8 in
Grille Length
10 1/4 in
Grille Width
10 1/4 in
Overall Depth
3 1/2 in
For Cut-Out Length
9 7/16 in
For Maximum Wall Thickness
6 in
Duct Diameter
8 in
For Wall Thickness
4 1/2 in to 6 in
Overall Height
10 1/4 in
For Cut-Out Width
9 7/16 in
Overall Width
9 7/16 in
For Minimum Wall Thickness
4 1/2 in
Width
18

Details

Voltage
120V AC
Mounting Location
wall
CFM @ 0.100-In. SP
70 cfm
Includes
Exterior Hood, Sleeve
Phase
1
Watts
18 W
Amps
0.2
Housing Material
Steel
Number of Speeds
1
Sones @ 0.100-In. SP @ 5 Ft.
1.1
Lighted
No
Heater
No
Motion Sensing
No
Hz
60 Hz
Night-Light
No
Grille Material
ABS Plastic
Nominal RPM
660 RPM
Green Certification or Other Recognition
ENERGY STAR
Standards
ASHRAE 62.2, California Title 24, ENERGY STAR, LEED, UL Listed, Washington VIAQ
Construction Material
Metal
Item
Exhaust Fan
Discharge
Horizontal
Humidity Sensing
No
Motor Type
AC
Motor Enclosure
Totally Enclosed Air Over
Frequency
60 Hz
Discharge Direction
Horizontal
Housing
Galvanized Steel
Full Load Current
0.2 A
Motor Speed
660 RPM
Maximum Ambient Operating Temperature
104 Degrees F
Noise Level @ 0.000 in SP @ 5 ft
1.1 sones
Noise Level @ 0.100 in SP @ 5 ft
1.1 sones
Mounting Orientation
Horizontal
Exhaust Airflow @ 0.000 in SP
70 cfm
Includes Grill
Yes
Nameplate Voltage
120V AC
Housing Finish
Galvanized
Exhaust Airflow @ 0.100 in SP
70 cfm
Control Type
No Switch on Unit
Nominal Voltage
115V AC
Maximum Noise Level
1.1 sones
Vent Design
Ducted
Wattage
18 W
Duct Shape
Round
Exhaust Airflow @ 0.250 in SP
50 cfm

Description

Exhaust Fan, Control Type No Switch on Unit, Duct Diameter 8 in, Exhaust Airflow @ 0.000 in SP 70 cfm, For Cut-Out Width 9 7/16 in, For Maximum Wall Thickness 6 in, For Minimum Wall Thickness 4 1/2 in, Housing Material Steel, Housing Finish Galvanized, Includes Exterior Hood, Sleeve, Maximum Noise Level 1.1 sones
