  9. 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM

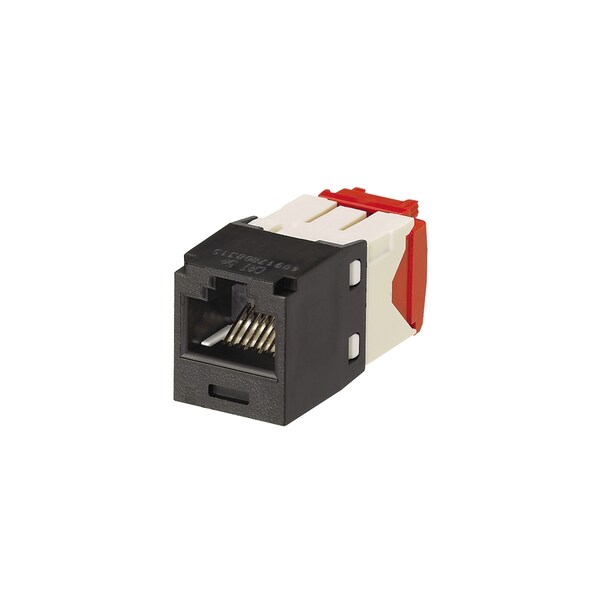

Panduit 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM CJ5E88TGBL - main

1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM

  • Mfr # CJ5E88TGBL

  • Zoro # G0528456

product price: $13.59
/ea

Key Features

Color
Black
Connector Type
Jack Module - Standard
Number of Ports
1
Overall Height (In.)
0.71
Termination Style
TG Style
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ5E88TGBL
Zoro #
G0528456
UPC #
74983395224
Country of Origin
Unknown

Dimensions

Overall Height (In.)
0.71
Overall Depth (In.)
1.5
Overall Width (In.)
0.62
Overall Length (In.)
1.5

Details

Color
Black
Connector Type
Jack Module - Standard
Number of Ports
1
Termination Style
TG Style
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets ANSI/TIA-1096-A, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, Meets IEC 60603-7, UL 1863 and UL 2043, and RoHS Compliant
Maximum Operating Temperature (°C)
75
Shield Type
Unshielded (UTP)
Body Material
Polycarbonate
Performance Level
Category 5e
Product Type
Network Connector
Module Type
Mini-Com®
Minimum Storage Temperature (°C)
-40
Resistance Properties
Heat-Resistant
Contact Material
Plated Phosphor Bronze
Minimum Operating Temperature (°C)
-10
Wiring Scheme
T568A/T568B
Maximum Storage Temperature (°C)
75
Connector Details
1 x RJ-45 IEEE 802.3at Network Female
Compatibility
Panduit Mini-Com: Modular Patch Panels, Faceplates, Surface Mount Boxes
Product Color
Black
Product Name
Mini-Com TX-5e Modular Insert
Contact Plating
Gold
Additional Information
Gold-Plated Contacts
Product Line
Mini-Com
Certifications & Standards
ANSI/TIA/EIA-568-C.2, ISO 11801
Termination
Idc
Sub Family
MINI-COM TX-5E JACK
Family
PAN-PUNCH
Wiring
A/B Universal
