  9. 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM

This item is Discontinued.

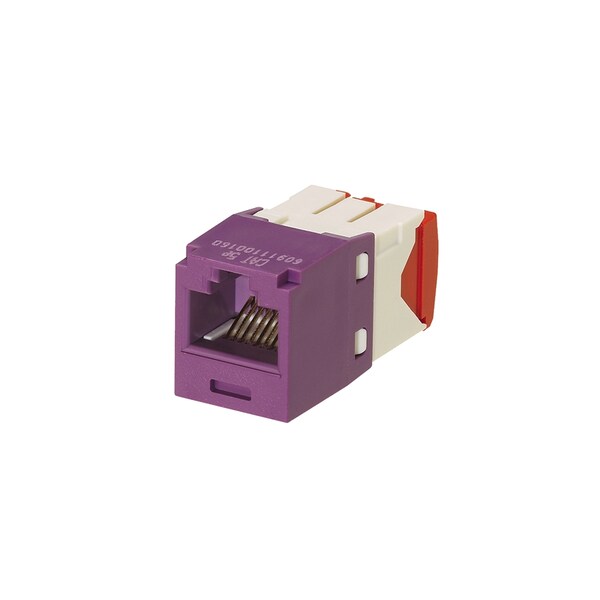

Panduit 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM CJ5E88TGVL

1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM (Discontinued)

  • Mfr # CJ5E88TGVL
  • Zoro # G0525096
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ5E88TGVL
Zoro #
G0525096
UPC #
74983395361
Country of Origin
Unknown

Dimensions

Height
0.7"
Width
0.6"
Depth
1.5"
Overall Width (In.)
0.62
Overall Height (In.)
0.71
Overall Depth (In.)
1.5
Overall Length (In.)
1.5

Details

Color
Violet
Connector Type
Jack Module - Standard
Number of Ports
1
Shield Type
Unshielded (UTP)
Maximum Operating Temperature (°C)
75
Body Material
Polycarbonate
Wiring Scheme
T568A/T568B
Minimum Storage Temperature (°C)
-40
Resistance Properties
Heat-Resistant
Product Type
Network Connector
Minimum Operating Temperature (°C)
-10
Termination Style
TG Style
Maximum Storage Temperature (°C)
75
Performance Level
Category 5e
Module Type
Mini-Com®
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Contact Material
Plated Phosphor Bronze
Product Color
Violet
Certifications & Standards
EIA/TIA-568, EN 50173-1:2002, ISO/IEC 11801:2002
Contact Plating
Gold
Product Name
Mini-Com TX-5e Modular Insert
Connector Details
1 x RJ-45 Network Female
Additional Information
Gold-Plated Contacts
Product Line
Mini-Com
Family
PAN-PUNCH
Sub Family
MINI-COM TX-5E JACK
Wiring
A/B Universal
Termination
Idc
