  5. 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM

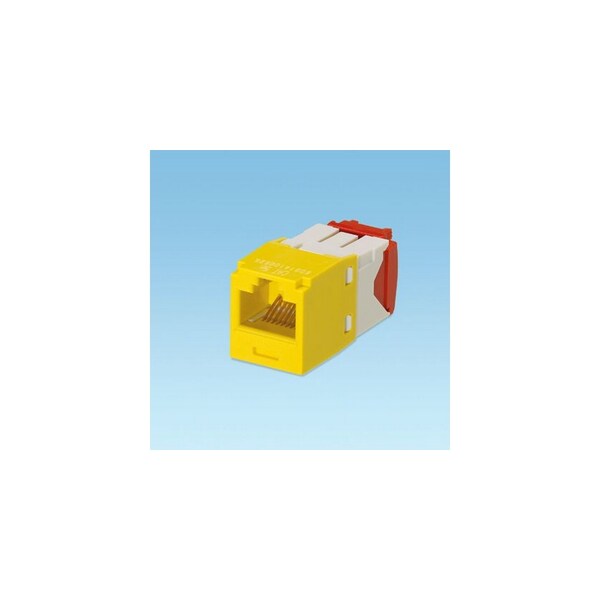

Panduit 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM CJ5E88TGYL - main

1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM

  • Mfr # CJ5E88TGYL

  • Zoro # G0527677

product price:  $13.59
/ea

Key Features

Color
Yellow
Number of Ports
1
Connector Type
Jack Module - Standard
Product Type
Network Connector
Resistance Properties
Heat-Resistant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CJ5E88TGYL
Zoro #
G0527677
UPC #
74983395392
Country of Origin
Unknown

Dimensions

Overall Depth (In.)
1.5
Overall Height (In.)
0.71
Overall Width (In.)
0.62
Overall Length (In.)
1.5

Details

Color
Yellow
Number of Ports
1
Connector Type
Jack Module - Standard
Product Type
Network Connector
Resistance Properties
Heat-Resistant
Contact Material
Plated Phosphor Bronze
Termination Style
TG Style
Performance Level
Category 5e
Shield Type
Unshielded (UTP)
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Body Material
Polycarbonate
Maximum Storage Temperature (°C)
75
Wiring Scheme
T568A/T568B
Maximum Operating Temperature (°C)
75
Minimum Operating Temperature (°C)
-10
Module Type
Mini-Com®
Minimum Storage Temperature (°C)
-40
Product Color
Yellow
Product Name
Mini-Com TX-5e Modular Insert
Product Line
Mini-Com
Contact Plating
Gold
Certifications & Standards
EIA/TIA-568
Connector Details
1 x RJ-45 Network Female
Additional Information
Gold-Plated Contacts
Sub Family
MINI-COM TX-5E JACK
Termination
Idc
Family
PAN-PUNCH
Wiring
A/B Universal
