  5. 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM, TX5E BLUE ROHS

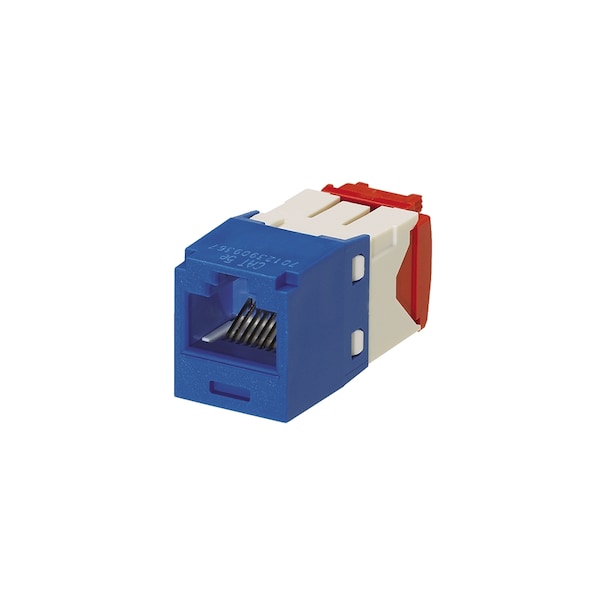

Panduit 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM, TX5E BLUE ROHS CJ5E88TGBU - main

1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM, TX5E BLUE ROHS

  • Mfr # CJ5E88TGBU

  • Zoro # G0527792

product price:  $13.89
/ea

Key Features

Color
Blue
Number of Ports
1
Connector Type
Jack Module - Standard
Termination Style
TG Style
Minimum Operating Temperature (°C)
-10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ5E88TGBU
Zoro #
G0527792
UPC #
74983395248
Country of Origin
Unknown

Dimensions

Overall Length (In.)
1.5
Overall Depth (In.)
1.5
Overall Height (In.)
0.71
Overall Width (In.)
0.62

Details

Color
Blue
Number of Ports
1
Connector Type
Jack Module - Standard
Termination Style
TG Style
Minimum Operating Temperature (°C)
-10
Maximum Storage Temperature (°C)
75
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Module Type
Mini-Com®
Wiring Scheme
T568A/T568B
Minimum Storage Temperature (°C)
-40
Resistance Properties
Heat-Resistant
Contact Material
Plated Phosphor Bronze
Maximum Operating Temperature (°C)
75
Shield Type
Unshielded (UTP)
Product Type
Network Connector
Performance Level
Category 5e
Body Material
Polycarbonate
Additional Information
Gold-Plated Contacts
Certifications & Standards
ANSI/TIA/EIA-568-C.2, ISO 11801
Product Line
Mini-Com
Compatibility
Panduit Mini-Com: Modular Patch Panels, Faceplates, Surface Mount Boxes
Connector Details
1 x RJ-45 IEEE 802.3at Network Female
Contact Plating
Gold
Product Name
Mini-Com TX-5e Modular Insert
Wiring
A/B Universal
Sub Family
MINI-COM TX-5E JACK
Family
PAN-PUNCH
Termination
Idc
