Shop PANDUIT

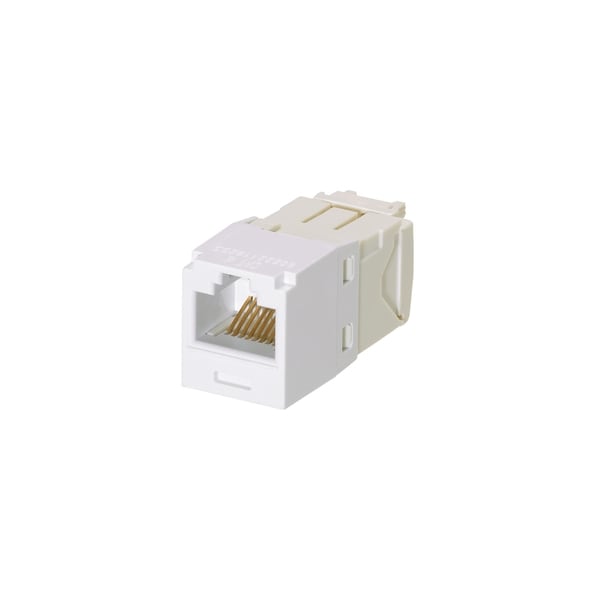

1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT6 IP5 MINI-COM

  • Mfr # CJ688TGWH

  • Zoro # G0524414

product price:
$
19.55
/ea

Key Features

Color
White
Number of Ports
1
Connector Type
Jack Module - Standard
Overall Depth (In.)
1.5
Module Type
Mini-Com®
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CJ688TGWH
Zoro #
G0524414
UPC #
74983395538
Country of Origin
Unknown

Dimensions

Overall Depth (In.)
1.5
Overall Length (In.)
1.5
Overall Height (In.)
0.71
Overall Width (In.)
0.62

Details

Color
White
Number of Ports
1
Connector Type
Jack Module - Standard
Module Type
Mini-Com®
Minimum Storage Temperature (°C)
-40
Body Material
Polycarbonate
Minimum Operating Temperature (°C)
-10
Maximum Storage Temperature (°C)
75
Product Type
Network Connector
Termination Style
TG Style
Resistance Properties
Heat-Resistant
Standards Met
Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
Wiring Scheme
T568A/T568B
Performance Level
Category 6
Shield Type
Unshielded (UTP)
Maximum Operating Temperature (°C)
75
Contact Material
Plated Phosphor Bronze
Product Name
Mini-Com TX6 Plus Modular Insert
Additional Information
Gold-Plated Contacts
Product Color
White
Contact Plating
Gold
Connector Details
1 x RJ-45 Network Female
Product Line
Mini-Com
Certifications & Standards
TIA/EIA-568-B.2-1, ISO 11801
Termination
Idc
Sub Family
MINI-COM TX-6 JACK
Family
GIGA-CHANNEL
Wiring
A/B Universal
