  11. Alcomplug, 2 Hole, 500 Kcmil, 1/2 Stud
This item is Discontinued.

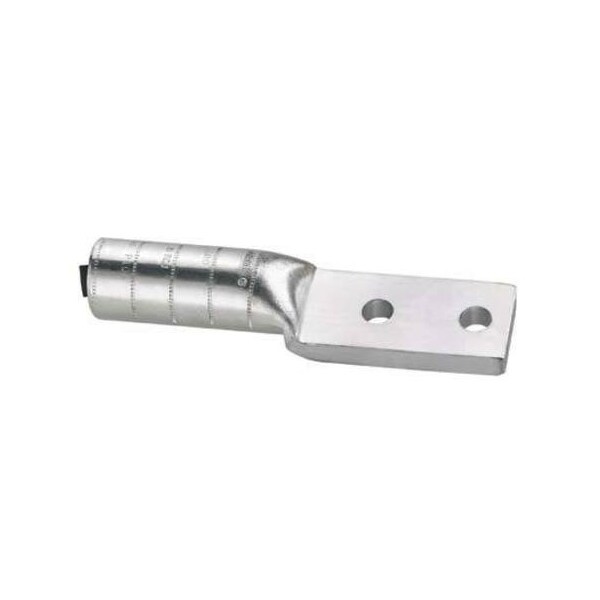

Panduit Alcomplug, 2 Hole, 500 Kcmil, 1/2 Stud LAB500-12-2R

Alcomplug, 2 Hole, 500 Kcmil, 1/2 Stud (Discontinued)

  • Mfr # LAB500-12-2R
  • Zoro # G0413382
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LAB500-12-2R
Zoro #
G0413382
UPC #
7498306988
Country of Origin
India

Dimensions

Width
1.74"
Cable Size
500 kcmil
Length
7.31"
Overall Length
7.31 in
Overall Length (mm)
185.67
Tongue Width (In.)
1.74
Inside Diameter (In.)
0.84
Outer Diameter (In.)
1.32
Aluminum Conductor Size (kcmil)
500
Wire Strip Length (In.)
42430
Tongue Thickness (In.)
0.45
Outer Diameter (mm)
33.52
Stud Hole Size (In.)
1 to 2
Tongue Width (mm)
44.19
Tongue Thickness (mm)
11.43
Copper Code Conductor Size (kcmil)
500
Stud Hole Size (mm)
12.7
Wire Strip Length (mm)
77.7
Barrel Length (In.)
3
Overall Length (In.)
7.31
Inside Diameter (mm)
21.33
Barrel Length (mm)
76.2
Outside Diameter Inches
1.32 in

Details

Item
Lug Compression Connector
Material
Aluminum
Tongue Angle
Straight
Color Code
Pink
Connector Type
Long Barrel
Includes
Connector barrel pre-filled with oxide inhibiting joint compound
Features
Corrosion Resistant
UL Temperature Rating (°C)
90
Tongue Type
Standard
Finish/Coating
Tin-Plated
Product Type
Compression Connectors - Lugs
Panduit Die Index Number
P99
Maximum Voltage (kV)
35
Lug Type
2 Stud Hole Lug
Stud Hole Spacing (In.)
1.75
Stud Hole Spacing (mm)
44.5
Barrel Type
Standard Barrel no Inspection Window
Burndy Die Index Number
300
Standards Met
C22.2 No. 65-13, 486A-486B File #E52164
Base Material
Aluminum
Product Material
Aluminum
Connector Plating
Tin
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Class
Wire Termination

Description

Alcomplug,2 Hole,500 Kcmil,1/2 Stud
