  7. Base Wiring Duct, Type F, Narrow, Adhesive, Light Gray, 3" x 5" x 1' (6-Pack)

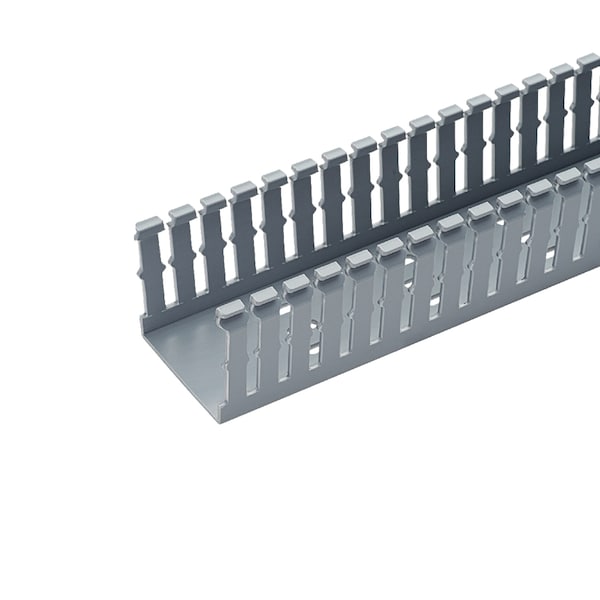

Panduit Base Wiring Duct, Type F, Narrow, Adhesive, Light Gray, 3" x 5" x 1' (6-Pack) F3X5LG6-A - main

Base Wiring Duct, Type F, Narrow, Adhesive, Light Gray, 3" x 5" x 1' (6-Pack)

  • Mfr # F3X5LG6-A

  • Zoro # G307478295

product price:  $113.99
/pk 6, $19.00/ea
Free Shipping & Returns

Key Features

Material
Lead-Free PVC
Application
Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Overall Length
4 ft
Includes
Base Only
Slot Width (In.)
0.2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
F3X5LG6-A
Zoro #
G307478295
UPC #
7498333921
Country of Origin
United States

Dimensions

Width
3.25 in
Height
5.1 in
Overall Length
4 ft
Slot Width (In.)
0.2
Overall Length (m)
1.8
Overall Height (In.)
5.1
Overall Width (mm)
82.6
Overall Width (In.)
3.25
Overall Height (mm)
129.5
Overall Length (ft.)
6
Slot Width (mm)
5

Details

Color
Light Gray
Material
Lead-Free PVC
Application
Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Includes
Base Only
Wiring Duct Type
F
Cover Part Number
C3LG6
Mount Method
Mounting Holes with Adhesive
Measurement System
Imperial
Flammability Rating
UL94 V-0
Wiring Duct Style
Narrow Slot Wiring Duct
Note
Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Product Type
Base Wiring Duct
Sub Brand
Panduct®
Standards Met
RoHS Compliant, UL Recognized, CE Compliant
Product Class
Wire Routing, Management & Protection

Description

Narrow Slotted Duct, Adhesive, PVC, 3 X 5 X 6'
