  7. Base Wiring Duct, Type G, Wide Slot, White, 1" x 4" x 1' (6-Pack), Adhesive

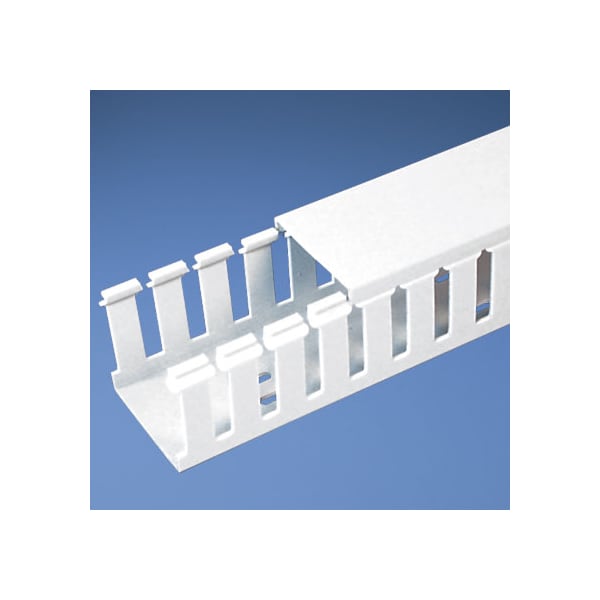

Panduit Base Wiring Duct, Type G, Wide Slot, White, 1" x 4" x 1' (6-Pack), Adhesive G1X4WH6-A - main
Shop PANDUIT

Base Wiring Duct, Type G, Wide Slot, White, 1" x 4" x 1' (6-Pack), Adhesive

  • Mfr # G1X4WH6-A

  • Zoro # G207478463

product price:  $63.15
/pk 6, $10.53/ea

Key Features

Material
Lead-Free PVC
Includes
Base Only
Application
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
Overall Width (mm)
32
Measurement System
Imperial
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
G1X4WH6-A
Zoro #
G207478463
UPC #
7498354700
Country of Origin
United States

Dimensions

Width
1.25 in
Height
4.1 in
Overall Width (mm)
32
Slot Width (In.)
0.31
Slot Width (mm)
7.9
Overall Length (m)
1.8
Overall Height (In.)
4.1
Overall Length (ft.)
6
Overall Width (In.)
1.25
Overall Height (mm)
104.1

Details

Color
White
Material
Lead-Free PVC
Includes
Base Only
Application
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
Measurement System
Imperial
Cover Part Number
C1WH6
Note
Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Flammability Rating
UL94 V-0
Wiring Duct Type
G
Mount Method
Mounting Holes with Adhesive
Wiring Duct Style
Wide Slot Wiring Duct
Product Type
Base Wiring Duct
Standards Met
RoHS Compliant, UL Recognized, CE Compliant
Sub Brand
Panduct®
Product Class
Wire Routing, Management & Protection

Description

Slotted Duct, PVC, 1X4X6', ADH, WHT
