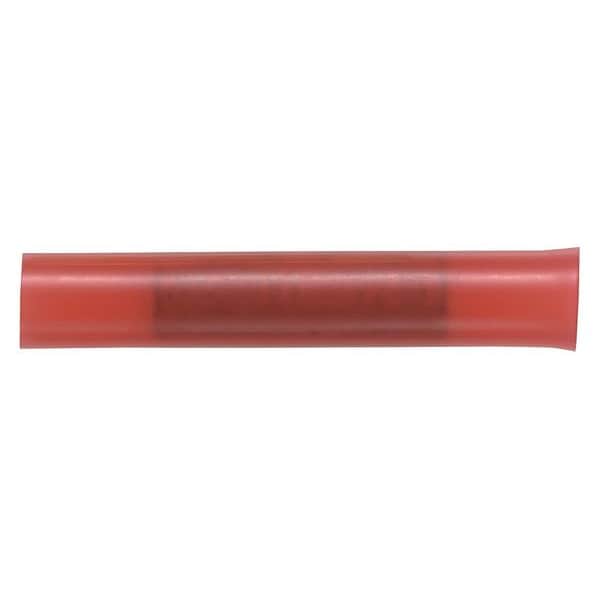

Butt Splice Wire Connector, 18 AWG Max, Red, Nylon Insulation, 600 V, 1000 PK
Mfr # BSN18-M
Zoro # G0159297
product price:Â $391.99
/pk 1000, $0.39/ea
Free Shipping & Returns
Key Features
Type
Butt Splice
Color
Red
Minimum Wire Size
22 AWG
Insulation Material
Nylon
Maximum Voltage
600 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BSN18-M
- Zoro #
- G0159297
- UPC #
- 074983830015
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 18 AWG
- Minimum Wire Size
- 22 AWG
- Barrel Inside Dia.
- 0.13 in
- Overall Length
- 1.15 in
- For Maximum Wire Insulation Diameter
- 0.115 in
- Barrel Outside Diameter
- 0.2 in
- Overall Width
- 0.2 in
- Strip Length
- 5/16 in
- Barrel Inside Diameter
- 0.13 in
- Wire Strip Length (In.)
- 9/32
- Minimum Copper Conductor Size (AWG SOL)
- #22
- Wire Strip Length (mm)
- 7.1
- Maximum Metric Conductor Size (mm²)
- 1
- For Minimum Wire Size - Stranded
- 22 AWG
- For Minimum Wire Size - Solid
- 22 AWG
- Wire Rope Length
- 1.15 in
Description
Butt Splice Connector, Connection Type Crimp, Insulation Material Nylon, Insulation Color Red, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards CSA C22.2 No. 65, UL 486C, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, Overall Length 1.15 in, Seam Style Brazed, Barrel Inside Diameter 0.13 in, Barrel Outside Diameter 0.2 in, Body Finish Tin Plated, Body Material Copper
