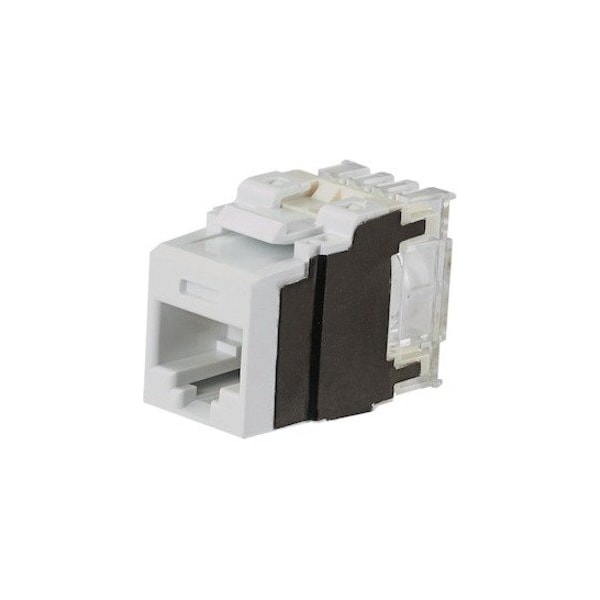

Panduit Cable Jack Module, Punchdown, Cat 6A/Class EA, ABS Plastic Module Housing NK6X88MWH - main

Cable Jack Module, Punchdown, Cat 6A/Class EA, ABS Plastic Module Housing

  • Mfr # NK6X88MWH

  • Zoro # G7772962

product price: $16.49
/ea

Key Features

Number of Ports
1
Color
White
Maximum Operating Temperature (°F)
167
Body Material
Polycarbonate
Minimum Operating Temperature (°C)
-10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK6X88MWH
Zoro #
G7772962
UPC #
74983722389
Country of Origin
Unknown

Dimensions

Overall Length (In.)
1.16
Overall Width (mm)
16.5
Overall Height (mm)
22.9
Overall Width (In.)
0.65
Overall Depth (In.)
1.16
Overall Length (mm)
29.5
Overall Height (In.)
0.9
Overall Depth (mm)
29.5

Details

Number of Ports
1
Color
White
Maximum Operating Temperature (°F)
167
Body Material
Polycarbonate
Minimum Operating Temperature (°C)
-10
Standards Met
Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
Wiring Scheme
T568A/T568B
Minimum Operating Temperature (°F)
14
Maximum Storage Temperature (°C)
75
Product Type
Network Connector
Termination Style
Punchdown
Contact Material
Plated Phosphor Bronze
Maximum Operating Temperature (°C)
75
Connector Type
Jack Module - Standard
Maximum Storage Temperature (°F)
167
Module Type
Keystone
Note
Punchdown style termination
Minimum Storage Temperature (°C)
-40
Minimum Storage Temperature (°F)
-40
Shield Type
Unshielded (UTP)
Performance Level
Category 6A
Connector Details
1 x RJ-45 Network Female
Product Line
NetKey
Shielding
No
Product Material
Polycarbonate, Acrylonitrile Butadiene Styrene (ABS)
Contact Plating
Gold
Product Name
NetKey Network Connector
Product Color
White
Wiring
A/B Universal
Termination
Idc

Description

Cable Jack Module, Punchdown, Cat 6A/Class EA, ABS Plastic Module Housing, Polycarbonate Wire Cap, White
