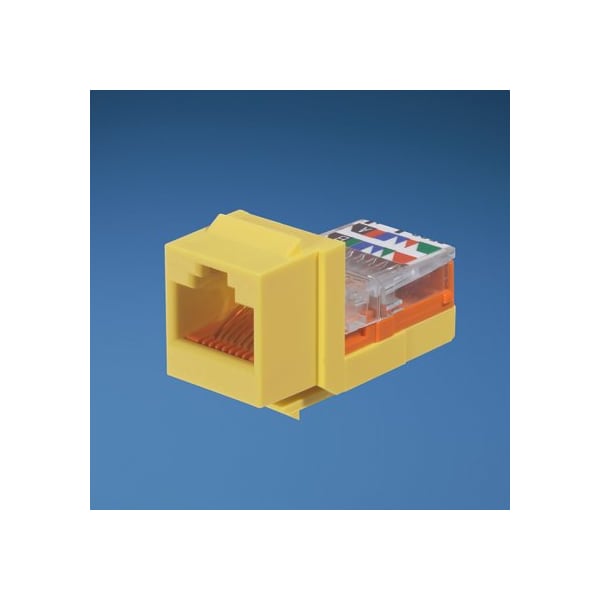

Panduit Cat 5E Leadframe Jack Module - Yellow NK5E88MYLY - main

Cat 5E Leadframe Jack Module - Yellow

  • Mfr # NK5E88MYLY

  • Zoro # G404859089

product price: $8.69
/ea
Sold in multiples of 2 for $17.38

Key Features

Color
Yellow
Width
0.65 in
Depth
1.37 in
Connector Type
Jack Module
Height
0.87 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK5E88MYLY
Zoro #
G404859089
UPC #
7498305506
Country of Origin
China

Dimensions

Width
0.65 in
Depth
1.37 in
Height
0.87 in
Overall Length
1.37 in
Overall Width
0.65
Overall Height
0.87
Overall Length (In.)
1.37
Overall Depth (In.)
1.37
Overall Width (In.)
0.65
Overall Height (In.)
0.87

Details

Color
Yellow
Connector Type
Jack Module
Termination Type
Leadframe
Type
Jack Module
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Minimum Storage Temperature (°C)
-40
Module Type
Keystone
Body Material
ABS/Polycarbonate
Note
Leadframe style jack
Performance Level
Category 5e
Shield Type
Unshielded (UTP)
Wiring Scheme
T568A/T568B
Contact Material
Plated Phosphor Bronze
Maximum Storage Temperature (°C)
70
Maximum Operating Temperature (°C)
65
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Termination Style
Leadframe
Product Type
Jack Module
Minimum Operating Temperature (°C)
-10
Product Class
Jack Modules
Max Operating Temperature
65 degrees celsius
Min Operating Temperature
-10 degrees celsius

Description

The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is yellow.
