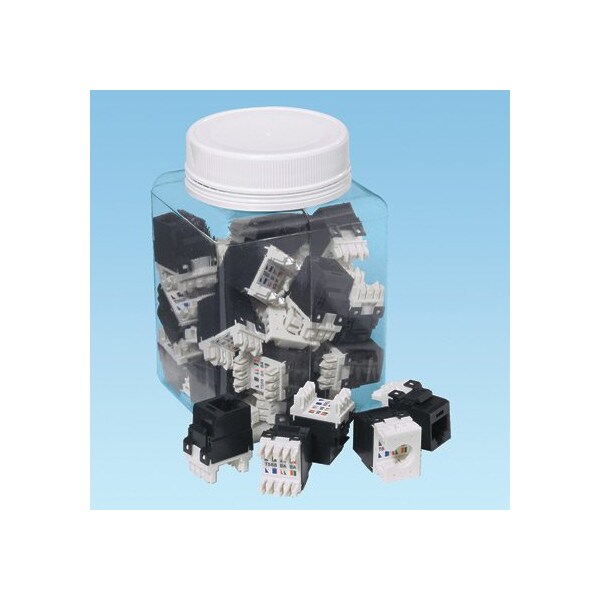

Cat 5E Punchdown Jack Module (25 Pack), 25PK
- Mfr # NKP5E88MGR-Q
- Zoro # G304858410
product price:Â
$
186.99
/pk of 25, $7.48/ea
Free Shipping & Returns
Key Features
Color
Green
Depth
1.16 in
Termination Type
Punchdown
Connector Type
Jack Module
Type
Jack Module
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- NKP5E88MGR-Q
- Zoro #
- G304858410
- UPC #
- 7498312522
- Country of Origin
- Costa Rica
- Color
- Green
- Termination Type
- Punchdown
- Connector Type
- Jack Module
- Type
- Jack Module
- Standards
- Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Termination Style
- Punchdown
- Shield Type
- Unshielded (UTP)
- Maximum Storage Temperature (°C)
- 75
- Wiring Scheme
- T568A/T568B
- Contact Material
- Plated Phosphor Bronze
- Performance Level
- Category 5e
- Standards Met
- Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Note
- Punchdown style termination; convenience pack of 25
- Product Type
- Jack Module
- Minimum Operating Temperature (°C)
- -10
- Body Material
- Polycarbonate
- Module Type
- Keystone
- Minimum Storage Temperature (°C)
- -40
- Maximum Operating Temperature (°C)
- 75
Description
The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is green and includes 25 per package.
