  9. Cat 5E Punchdown Jack Module (25 Pack), 25PK

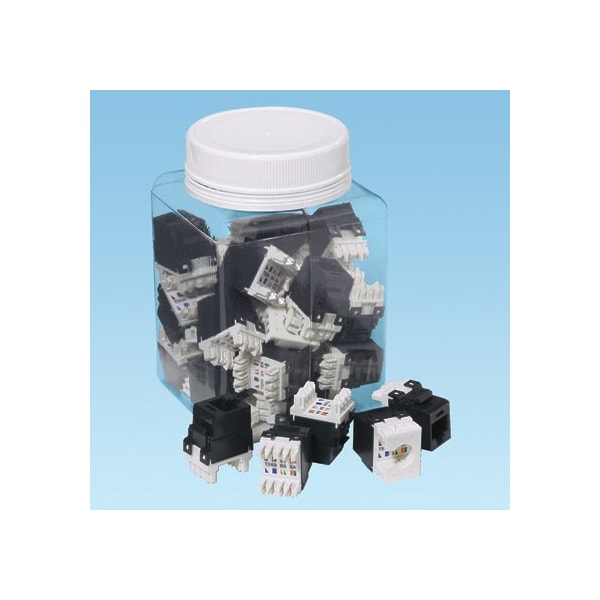

Panduit Cat 5E Punchdown Jack Module (25 Pack), 25PK NKP5E88MIG-Q - main

Cat 5E Punchdown Jack Module (25 Pack), 25PK

  • Mfr # NKP5E88MIG-Q

  • Zoro # G604858318

product price: $141.99
/pk 25, $5.68/ea
Free Shipping & Returns

Key Features

Color
Gray
Connector Type
Jack Module
Width
0.65 in
Depth
1.16 in
Height
0.9 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NKP5E88MIG-Q
Zoro #
G604858318
UPC #
7498312516
Country of Origin
Costa Rica

Dimensions

Width
0.65 in
Depth
1.16 in
Height
0.9 in
Overall Height
0.9
Overall Length
1.16 in
Overall Width
0.65
Overall Width (In.)
0.65
Overall Length (In.)
1.16
Overall Depth (In.)
1.16
Overall Height (In.)
0.9

Details

Color
Gray
Connector Type
Jack Module
Type
Jack Module
Termination Type
Punchdown
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Minimum Storage Temperature (°C)
-40
Shield Type
Unshielded (UTP)
Performance Level
Category 5e
Maximum Operating Temperature (°C)
75
Body Material
Polycarbonate
Product Type
Jack Module
Wiring Scheme
T568A/T568B
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Maximum Storage Temperature (°C)
75
Module Type
Keystone
Contact Material
Plated Phosphor Bronze
Termination Style
Punchdown
Note
Punchdown style termination; convenience pack of 25
Minimum Operating Temperature (°C)
-10
Max Operating Temperature
65 degrees celsius
Product Color
International Gray
Min Operating Temperature
-10 degrees celsius
Product Class
Copper Systems

Description

The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is international gray and includes 25 per package.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
