  9. Cat 5E Punchdown Jack Module (25 Pack), 25PK

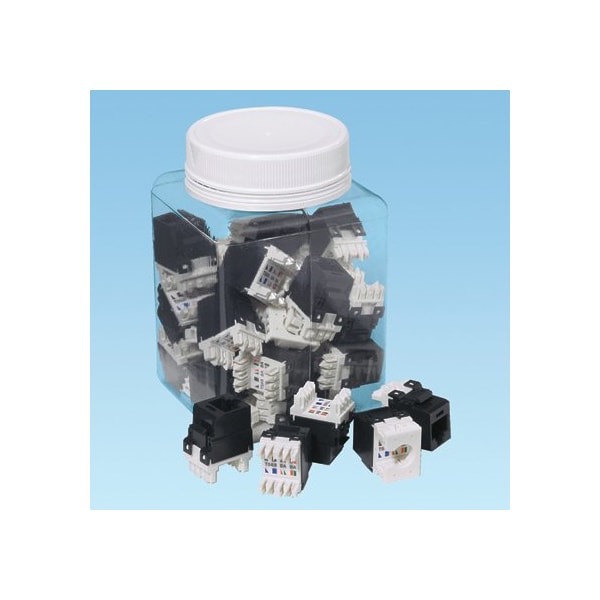

Panduit Cat 5E Punchdown Jack Module (25 Pack), 25PK NKP5E88MIW-Q - main

Cat 5E Punchdown Jack Module (25 Pack), 25PK

  • Mfr # NKP5E88MIW-Q

  • Zoro # G904858261

product price: $170.99
/pk 25, $6.84/ea
Free Shipping & Returns

Key Features

Color
White
Connector Type
Jack Module
Termination Type
Punchdown
Height
0.9 in
Type
Jack Module
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NKP5E88MIW-Q
Zoro #
G904858261
UPC #
7498312512
Country of Origin
Costa Rica

Dimensions

Height
0.9 in
Width
0.65 in
Depth
1.16 in
Overall Length
1.16 in
Overall Height
0.9
Overall Width
0.65
Overall Length (In.)
1.16
Overall Depth (In.)
1.16
Overall Height (In.)
0.9
Overall Width (In.)
0.65

Details

Color
White
Connector Type
Jack Module
Termination Type
Punchdown
Type
Jack Module
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Maximum Storage Temperature (°C)
75
Performance Level
Category 5e
Note
Punchdown style termination; convenience pack of 25
Shield Type
Unshielded (UTP)
Contact Material
Plated Phosphor Bronze
Termination Style
Punchdown
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Module Type
Keystone
Minimum Operating Temperature (°C)
-10
Body Material
Polycarbonate
Maximum Operating Temperature (°C)
75
Product Type
Jack Module
Wiring Scheme
T568A/T568B
Minimum Storage Temperature (°C)
-40
Max Operating Temperature
65 degrees celsius
Product Color
Off White
Product Class
Copper Systems
Min Operating Temperature
-10 degrees celsius

Description

The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is international white, includes 25 per package.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
