Cat 5E Punchdown Jack Module (25 Pack), 25PK
Mfr # NKP5E88MRD-Q
Zoro # G104858764
product price:Â
$
192.99
/pk of 25, $7.72/ea
Free Shipping & Returns
Key Features
Color
Red
Width
0.65 in
Type
Jack Module
Depth
1.16 in
Connector Type
Jack Module
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- NKP5E88MRD-Q
- Zoro #
- G104858764
- UPC #
- 7498312520
- Country of Origin
- Costa Rica
- Color
- Red
- Type
- Jack Module
- Connector Type
- Jack Module
- Termination Type
- Punchdown
- Standards
- Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Product Type
- Jack Module
- Body Material
- Polycarbonate
- Shield Type
- Unshielded (UTP)
- Minimum Storage Temperature (°C)
- -40
- Contact Material
- Plated Phosphor Bronze
- Termination Style
- Punchdown
- Performance Level
- Category 5e
- Maximum Operating Temperature (°C)
- 75
- Maximum Storage Temperature (°C)
- 75
- Standards Met
- Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Note
- Punchdown style termination; convenience pack of 25
- Minimum Operating Temperature (°C)
- -10
- Wiring Scheme
- T568A/T568B
- Module Type
- Keystone
Description

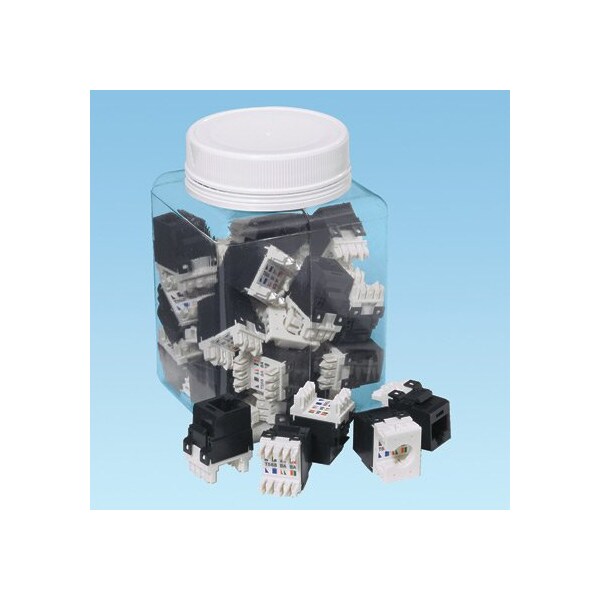

The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is red and includes 25 per package.
