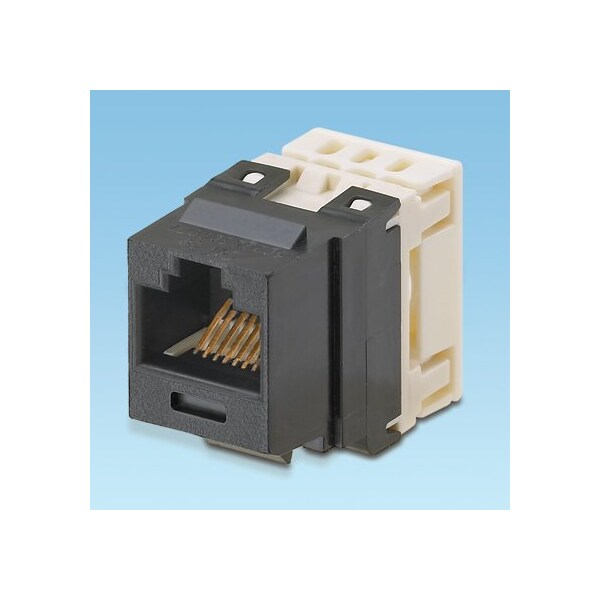

Cat 5E Punchdown Jack Module - Black
Mfr # NKP5E88MBL
Zoro # G104859358
product price:Â
$
7.89
/ea
Sold in multiples of 2 for $15.78
Key Features
Color
Black
Type
Jack Module
Width
0.65 in
Depth
1.16 in
Termination Type
Punchdown
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- NKP5E88MBL
- Zoro #
- G104859358
- UPC #
- 7498309711
- Country of Origin
- Costa Rica
- Color
- Black
- Type
- Jack Module
- Termination Type
- Punchdown
- Connector Type
- Jack Module
- Standards
- Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Minimum Operating Temperature (°C)
- -10
- Minimum Storage Temperature (°C)
- -40
- Maximum Storage Temperature (°C)
- 75
- Maximum Operating Temperature (°C)
- 75
- Module Type
- Keystone
- Termination Style
- Punchdown
- Note
- Punchdown style termination
- Product Type
- Jack Module
- Shield Type
- Unshielded (UTP)
- Wiring Scheme
- T568A/T568B
- Body Material
- Polycarbonate
- Standards Met
- Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Contact Material
- Plated Phosphor Bronze
- Performance Level
- Category 5e
- Min Operating Temperature
- -10 degrees celsius
- Product Class
- Jack Modules
Description
The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is black.
