Shop PANDUIT

Cat 5E Punchdown Jack Module - Blue

  • Mfr # NKP5E88MBU
  • Zoro # G204859630
product price:
$
7.15
/ea
Sold in multiples of 2 for $14.30

Key Features

Color
Blue
Connector Type
Jack Module
Type
Jack Module
Height
0.9 in
Depth
1.16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
NKP5E88MBU
Zoro #
G204859630
UPC #
7498309712
Country of Origin
Costa Rica
Color
Blue
Connector Type
Jack Module
Type
Jack Module
Termination Type
Punchdown
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Performance Level
Category 5e
Wiring Scheme
T568A/T568B
Minimum Storage Temperature (°C)
-40
Module Type
Keystone
Termination Style
Punchdown
Maximum Storage Temperature (°C)
75
Maximum Operating Temperature (°C)
75
Product Type
Jack Module
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Shield Type
Unshielded (UTP)
Body Material
Polycarbonate
Note
Punchdown style termination
Contact Material
Plated Phosphor Bronze
Minimum Operating Temperature (°C)
-10
Product Class
Jack Modules
Max Operating Temperature
65 degrees celsius
Min Operating Temperature
-10 degrees celsius

Description

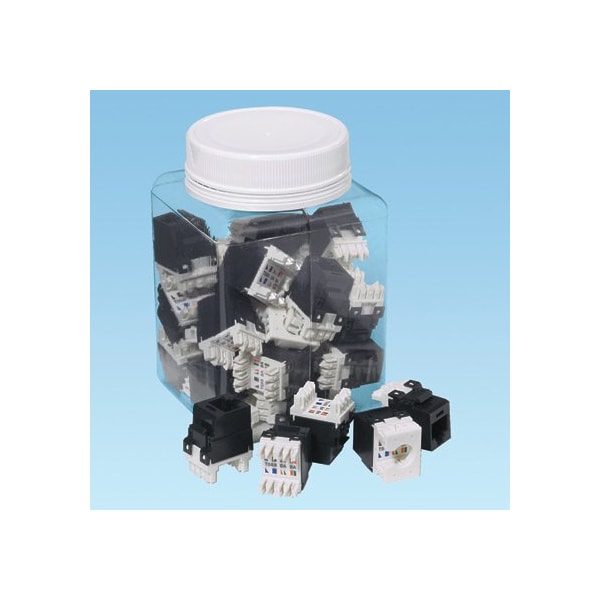

The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is blue.
