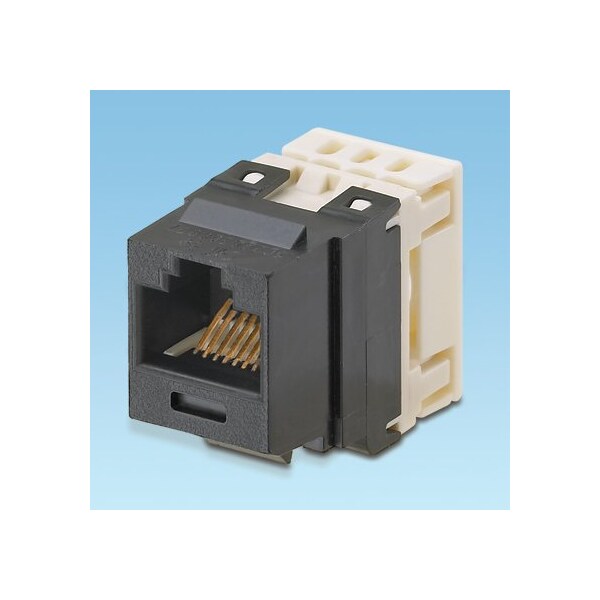

Panduit Cat 5E Punchdown Jack Module - Off Wh NKP5E88MIW - main

Cat 5E Punchdown Jack Module - Off Wh

  • Mfr # NKP5E88MIW

  • Zoro # G204858275

product price:  $7.69
/ea
Sold in multiples of 2 for $15.38

Key Features

Color
White
Connector Type
Jack Module
Depth
1.16 in
Termination Type
Punchdown
Width
0.65 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NKP5E88MIW
Zoro #
G204858275
UPC #
7498309714
Country of Origin
Costa Rica

Dimensions

Depth
1.16 in
Width
0.65 in
Height
0.9 in
Overall Length
1.16 in
Overall Height
0.9
Overall Width
0.65
Overall Height (In.)
0.9
Overall Depth (In.)
1.16
Overall Length (In.)
1.16
Overall Width (In.)
0.65

Details

Color
White
Connector Type
Jack Module
Termination Type
Punchdown
Type
Jack Module
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Body Material
Polycarbonate
Maximum Storage Temperature (°C)
75
Maximum Operating Temperature (°C)
75
Performance Level
Category 5e
Note
Punchdown style termination
Termination Style
Punchdown
Product Type
Jack Module
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Minimum Storage Temperature (°C)
-40
Contact Material
Plated Phosphor Bronze
Shield Type
Unshielded (UTP)
Module Type
Keystone
Wiring Scheme
T568A/T568B
Minimum Operating Temperature (°C)
-10
Min Operating Temperature
-10 degrees celsius
Product Class
Jack Modules

Description

The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is international white.
