Panduit Cat 6 Punchdown Jack Module - Black NK688MBL - main

Cat 6 Punchdown Jack Module - Black

  • Mfr # NK688MBL

  • Zoro # G804858668

product price: $8.75
/ea

Key Features

Color
Black
Width
0.65 in
Type
Jack Module
Connector Type
Jack Module
Depth
1.16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK688MBL
Zoro #
G804858668
UPC #
7498357470
Country of Origin
United States

Dimensions

Width
0.65 in
Depth
1.16 in
Height
0.9 in
Overall Width
0.65
Overall Height
0.9
Overall Length
1.16 in
Overall Length (In.)
1.16
Overall Width (In.)
0.65
Overall Height (In.)
0.9
Overall Depth (In.)
1.16

Details

Color
Black
Type
Jack Module
Connector Type
Jack Module
Termination Type
Punchdown
Standards
Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
Standards Met
Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
Performance Level
Category 6
Wiring Scheme
T568A/T568B
Termination Style
Punchdown
Minimum Operating Temperature (°C)
-10
Body Material
Polycarbonate
Minimum Storage Temperature (°C)
-40
Maximum Storage Temperature (°C)
75
Product Type
Jack Module
Contact Material
Plated Phosphor Bronze
Note
Punchdown style termination
Shield Type
Unshielded (UTP)
Module Type
Keystone
Maximum Operating Temperature (°C)
75
Product Class
Jack Modules
Min Operating Temperature
-10 degrees celsius

Description

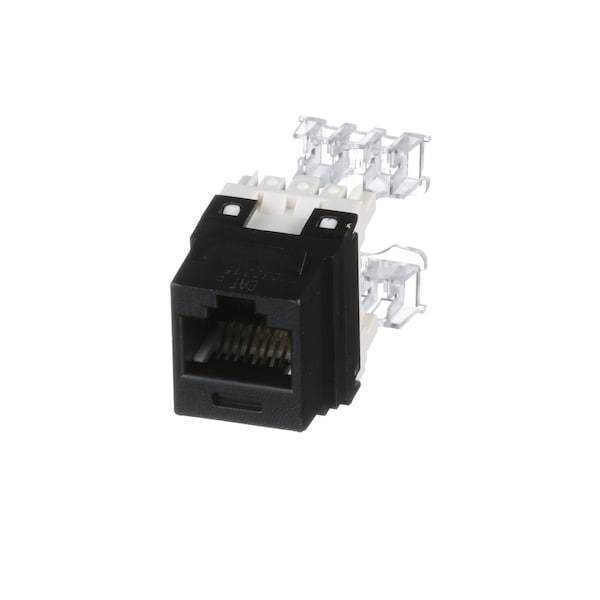

The NetKey Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is black.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
