  9. Cat 6 Punchdown Jack Module - Interna

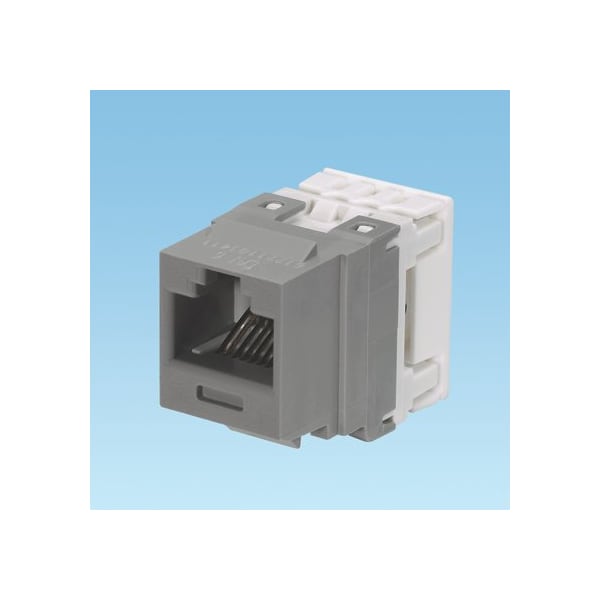

Panduit Cat 6 Punchdown Jack Module - Interna NK688MIG - main

Cat 6 Punchdown Jack Module - Interna

  • Mfr # NK688MIG

  • Zoro # G804859009

product price: $9.49
/ea

Key Features

Color
Gray
Connector Type
Jack Module
Type
Jack Module
Depth
1.16 in
Height
0.9 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK688MIG
Zoro #
G804859009
UPC #
7498357475
Country of Origin
United States

Dimensions

Depth
1.16 in
Height
0.9 in
Width
0.65 in
Overall Length
1.16 in
Overall Width
0.65
Overall Height
0.9
Overall Width (In.)
0.65
Overall Depth (In.)
1.16
Overall Height (In.)
0.9
Overall Length (In.)
1.16

Details

Color
Gray
Connector Type
Jack Module
Type
Jack Module
Termination Type
Punchdown
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Maximum Operating Temperature (°C)
75
Body Material
Polycarbonate
Note
Punchdown style termination
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Termination Style
Punchdown
Product Type
Jack Module
Minimum Operating Temperature (°C)
-10
Module Type
Keystone
Shield Type
Unshielded (UTP)
Minimum Storage Temperature (°C)
-40
Maximum Storage Temperature (°C)
75
Contact Material
Plated Phosphor Bronze
Wiring Scheme
T568A/T568B
Performance Level
Category 6
Max Operating Temperature
65 degrees celsius
Product Class
Jack Modules
Min Operating Temperature
-10 degrees celsius
Product Color
International Gray

Description

The NetKey Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is international gray.
