  9. Cat 6 Punchdown Jack Module - Red
Shop All Voice & Data Jacks
Panduit

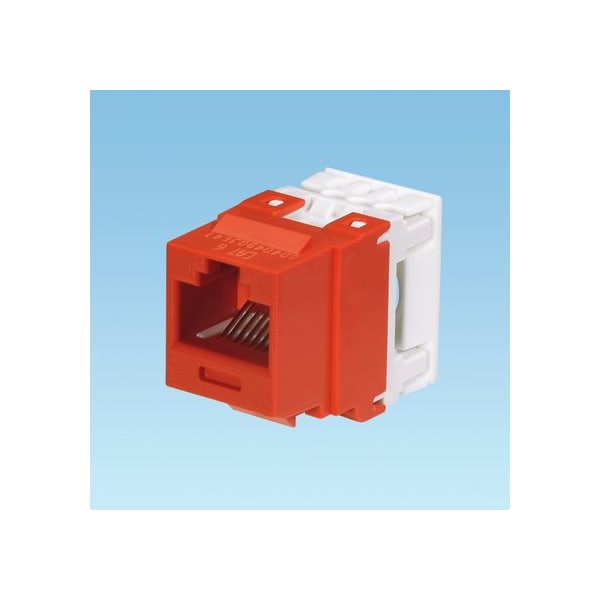

Cat 6 Punchdown Jack Module - Red

product price: $10.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Red
  • Connector Type Jack Module
  • Width 0.65 in
  • Height 0.9 in
  • Depth 1.16 in
See all product information

Product Information

Dimensions

Width 0.65 in
Height 0.9 in
Depth 1.16 in
Overall Height 0.9
Overall Width 0.65
Overall Length 1.16 in
Overall Depth (In.) 1.16
Overall Width (In.) 0.65
Overall Height (In.) 0.9
Overall Length (In.) 1.16

Details

Color Red
Connector Type Jack Module
Type Jack Module
Termination Type Punchdown
Standards Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Note Punchdown style termination
Maximum Storage Temperature (°C) 75
Standards Met Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Product Type Jack Module
Shield Type Unshielded (UTP)
Module Type Keystone
Contact Material Plated Phosphor Bronze
Minimum Operating Temperature (°C) -10
Wiring Scheme T568A/T568B
Maximum Operating Temperature (°C) 75
Performance Level Category 6
Minimum Storage Temperature (°C) -40
Body Material Polycarbonate
Termination Style Punchdown
Min Operating Temperature -10 degrees celsius
Product Class Jack Modules
Max Operating Temperature 65 degrees celsius

Description

The NetKey Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is red.
