  9. Cat 6 Punchdown Jack Module - White

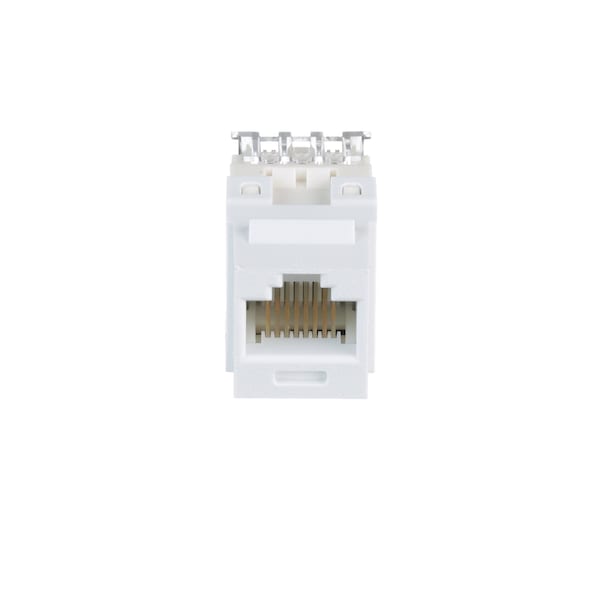

Panduit Cat 6 Punchdown Jack Module - White NK688MWH - main

Cat 6 Punchdown Jack Module - White

  • Mfr # NK688MWH

  • Zoro # G804859191

product price: $10.65
/ea

Key Features

Color
White
Type
Jack Module
Connector Type
Jack Module
Depth
1.16 in
Width
0.65 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK688MWH
Zoro #
G804859191
UPC #
7498357474
Country of Origin
United States

Dimensions

Depth
1.16 in
Width
0.65 in
Height
0.9 in
Overall Length
1.16 in
Overall Width
0.65
Overall Height
0.9
Overall Depth (In.)
1.16
Overall Width (In.)
0.65
Overall Length (In.)
1.16
Overall Height (In.)
0.9

Details

Color
White
Type
Jack Module
Connector Type
Jack Module
Termination Type
Punchdown
Standards
Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
Maximum Operating Temperature (°C)
75
Minimum Storage Temperature (°C)
-40
Termination Style
Punchdown
Body Material
Polycarbonate
Wiring Scheme
T568A/T568B
Contact Material
Plated Phosphor Bronze
Maximum Storage Temperature (°C)
75
Module Type
Keystone
Performance Level
Category 6
Standards Met
Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
Minimum Operating Temperature (°C)
-10
Shield Type
Unshielded (UTP)
Product Type
Jack Module
Note
Punchdown style termination
Product Class
Jack Modules
Max Operating Temperature
65 degrees celsius
Min Operating Temperature
-10 degrees celsius

Description

The NetKey Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is white.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
