  9. Cat 6 Utp Jack Module, Tp Style, Elec (10 Pack), 10PK

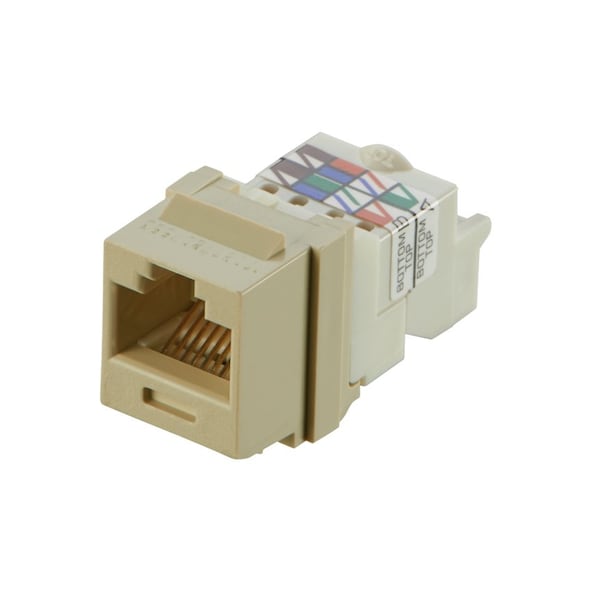

Panduit Cat 6 Utp Jack Module, Tp Style, Elec (10 Pack), 10PK NK6TMEI - main

Cat 6 Utp Jack Module, Tp Style, Elec (10 Pack), 10PK

  • Mfr # NK6TMEI

  • Zoro # G404858853

product price: $107.99
/pk 10, $10.80/ea
Free Shipping & Returns

Key Features

Color
Ivory
Height
0.76 in
Depth
1.43 in
Width
0.58 in
Termination Type
TP Style
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK6TMEI
Zoro #
G404858853
UPC #
7498343808
Country of Origin
United States

Dimensions

Height
0.76 in
Depth
1.43 in
Width
0.58 in
Overall Width
0.58
Overall Height
0.76
Overall Length
1.43 in
Overall Depth (In.)
1.43
Overall Height (In.)
0.76
Overall Length (In.)
1.43
Overall Width (In.)
0.58

Details

Color
Ivory
Termination Type
TP Style
Connector Type
Jack Module
Type
Jack Module
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Termination Style
TP Style
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Maximum Operating Temperature (°C)
65
Note
TP style termination
Minimum Operating Temperature (°C)
-10
Body Material
ABS/Polycarbonate
Product Type
Jack Module
Wiring Scheme
T568A/T568B
Shield Type
Unshielded (UTP)
Minimum Storage Temperature (°C)
-40
Maximum Storage Temperature (°C)
70
Contact Material
Plated Phosphor Bronze
Performance Level
Category 6
Module Type
Keystone
Product Class
Copper Systems
Min Operating Temperature
-10 degrees celsius
Product Color
Electric Ivory
Max Operating Temperature
65 degrees celsius

Description

The NetKey Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is electric ivory.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
