  9. Cat 6 Utp Jack Module, Tp Style, Off

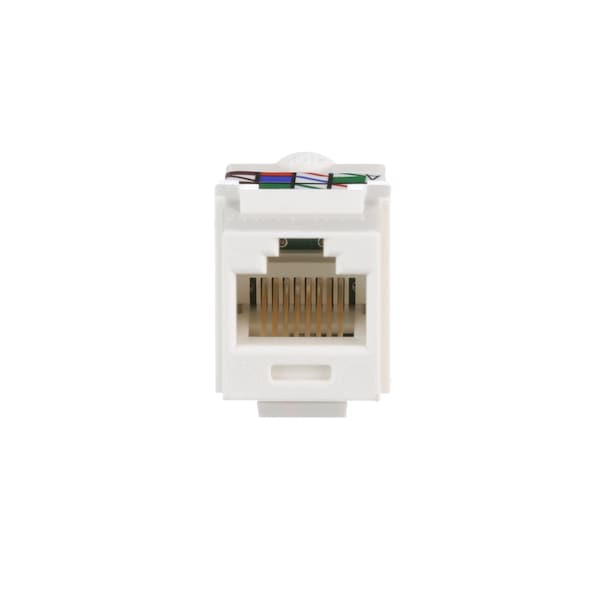

Panduit Cat 6 Utp Jack Module, Tp Style, Off NK6TMIW - main

Cat 6 Utp Jack Module, Tp Style, Off

  • Mfr # NK6TMIW

  • Zoro # G904858896

product price: $12.99
/ea

Key Features

Color
White
Type
Jack Module
Depth
1.43 in
Connector Type
Jack Module
Height
0.76 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK6TMIW
Zoro #
G904858896
UPC #
7498343805
Country of Origin
United States

Dimensions

Depth
1.43 in
Height
0.76 in
Width
0.58 in
Overall Height
0.76
Overall Width
0.58
Overall Length
1.43 in
Overall Height (In.)
0.76
Overall Width (In.)
0.58
Overall Depth (In.)
1.43
Overall Length (In.)
1.43

Details

Color
White
Type
Jack Module
Connector Type
Jack Module
Termination Type
TP Style
Standards
Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
Performance Level
Category 6
Maximum Storage Temperature (°C)
70
Shield Type
Unshielded (UTP)
Maximum Operating Temperature (°C)
65
Product Type
Jack Module
Minimum Operating Temperature (°C)
-10
Minimum Storage Temperature (°C)
-40
Wiring Scheme
T568A/T568B
Standards Met
Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
Note
TP style termination
Contact Material
Plated Phosphor Bronze
Body Material
ABS/Polycarbonate
Module Type
Keystone
Termination Style
TP Style
Product Class
Jack Modules
Min Operating Temperature
-10 degrees celsius

Description

The NetKey Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is off white.
