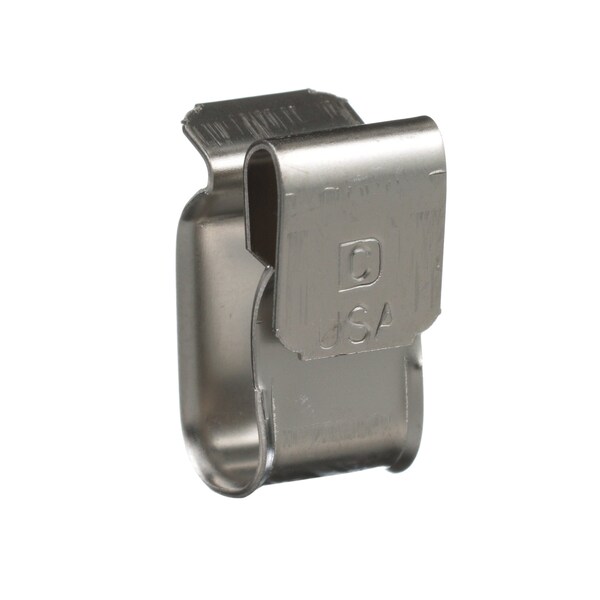

Conduit Clip, Conduit Use, Stainless Steel (Discontinued)
- Mfr # MEC100-2PV-C
- Zoro # G904858780
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MEC100-2PV-C
Zoro #
G904858780
UPC #
61305676668
Country of Origin
United States
Dimensions
Height
0.73
Width
0.38 in
Overall Width
0.38
Overall Width (In.)
0.38
Overall Width (mm)
9.7
Maximum Bundle Diameter (mm)
7.6
Maximum Compatible Panel Thickness (In.)
0.098
Maximum Compatible Panel Thickness (mm)
2.5
Maximum Bundle Diameter (In.)
0.3
Details
Item
Clip
Material
Stainless Steel
For Use With
Conduit
Color
Silver
Type
Cable Clip
Mounting Type
Clip-On
Standards
cULus 1565 (E136577), RoHS Compliant
Application
For routing PV wires along solar panel modules
Body Material
Stainless Steel
Resistance Properties
Weather Resistant
Mount Method
Edge Clip
Note
Clips accommodate one to two 10 gauge PV wires for routing parallel to the panel edge
Environment
Indoor/Outdoor
Product Type
Wire Clip
Description
Stainless Steel Metal Edge Clip for Solar Applications. Can be installed on a Panel thickness ranging from 0.051" to 0.098" and can accommodate 1 or 2 wires with a diameter range of 0.200" to 0.300". Use when cable orientation is Parallel to the Outer edge of the panel.
