  11. Copper Compression Lug, 1 Hole, 3/0 AWG, Narrow Tongue, LCAN3/0-14-X

This item is Discontinued.

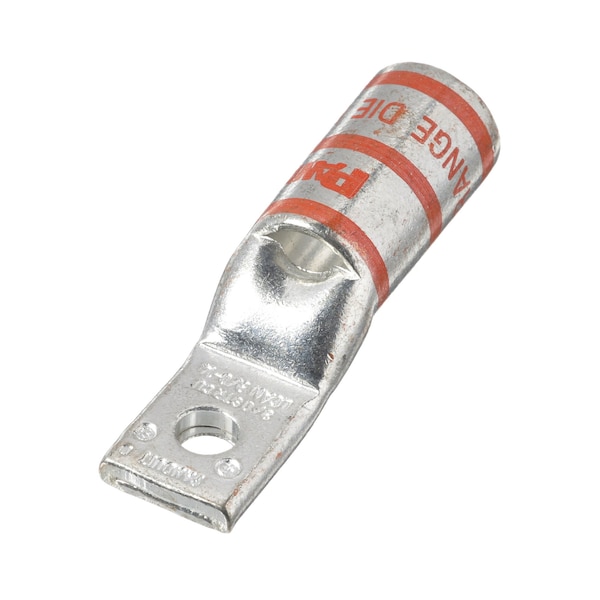

Panduit Copper Compression Lug, 1 Hole, 3/0 AWG, Narrow Tongue, LCAN3/0-14-X LCAN3/0-14-X

Copper Compression Lug, 1 Hole, 3/0 AWG, Narrow Tongue, LCAN3/0-14-X (Discontinued)

  • Mfr # LCAN3/0-14-X
  • Zoro # G2792300
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAN3/0-14-X
Zoro #
G2792300
UPC #
7498360337
Country of Origin
Mexico

Dimensions

Overall Length
2.28 in
Length
2.2"
Barrel Length (mm)
29
Tongue Width (In.)
0.64
Tongue Thickness (In.)
0.14
Barrel Length (In.)
1.14
Copper Code Conductor Size (AWG)
36586
Stud Hole Size (mm)
6.4
Overall Length (mm)
69.6
Wire Strip Length (In.)
1.19
Wire Strip Length (mm)
30.2
Stud Hole Size (In.)
44930
Tongue Width (mm)
16.3
Tongue Thickness (mm)
3.6
Overall Length (In.)
2.28

Details

Tongue Angle
Straight
Color Code
Orange
Features
Angled Connector, Corrosion Resistant
Panduit Die Index Number
P50
Maximum Voltage (kV)
35
Product Type
Copper Compression Connectors - Lugs
Base Material
Copper
Burndy Die Index Number
14
UL Temperature Rating (°C)
90
Barrel Type
Standard Barrel Length with Inspection Window
Finish/Coating
Tin-Plated
Tongue Type
Narrow
Standards Met
C22.2 No. 65-13, 486A-486B File #E52164
Connector Details
1 x Terminal
Product Name
Terminal Connector
Connector Plating
Tin
Product Material
Copper
Product Class
Wire Termination

Description

Copper Compression Lug, 1 Hole, 3/0 AWG, Narrow Tongue, 1/4 (6.4mm) Stud
