  11. Copper Compression Lug, 1 Hole, 4/0 AWG, Short Barrel, LCAS4/0-38F-X

This item is Discontinued.

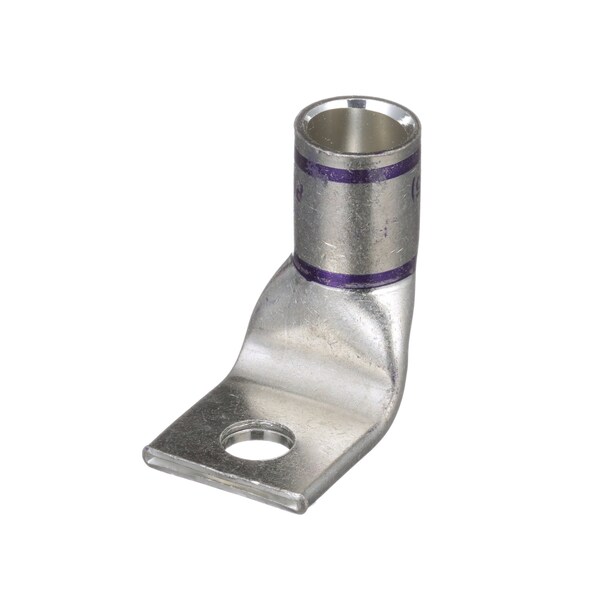

Panduit Copper Compression Lug, 1 Hole, 4/0 AWG, Short Barrel, LCAS4/0-38F-X LCAS4/0-38F-X

Copper Compression Lug, 1 Hole, 4/0 AWG, Short Barrel, LCAS4/0-38F-X (Discontinued)

  • Mfr # LCAS4/0-38F-X
  • Zoro # G2798576
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAS4/0-38F-X
Zoro #
G2798576
UPC #
7498386945
Country of Origin
Mexico

Dimensions

Length
1.6"
Overall Length
1.84 in
Stud Hole Size In. (mm)
3/8 (9.5)
Tongue Thickness (mm)
3.6
Barrel Length (In.)
0.91
Tongue Width (mm)
26.9
Tongue Thickness In. (mm)
0.14 (3.6)
Stud Hole Size (mm)
9.5
Tongue Thickness
0.14
Conductor Size
4/0 AWG Code
Length In (mm)
1.84 (46.7)
Wire Strip Length In. (mm)
1 (25.4)
Stud Hole Size (In.)
44993
Wire Strip Length (mm)
25.4
Length (In.)
1.84
Tongue Width (In.)
1.06
Copper Conductor Size
4/0 AWG
Barrel Length In. (mm)
0.91 (23.1)
Wire Strip Length (In.)
1
Tongue Width In. (mm)
1.06 (26.9)
Barrel Length (mm)
23.1
Length (mm)
46.7
Code Conductor Size
4/0 AWG Code

Details

Material
Tin-Plated Copper
Tongue Angle
90°
Features
90° Angled Connector
Barrel Style
Standard
Barrel Type
Short Barrel Length with Inspection Window
Conductor Material
Copper
T&B Die Index No.
54
Angle
90°
UL and CSA Temperature Rating
90°
CSA Certified
C22.2 No. 65-13
Tongue Type
Standard
Panduit Color Code
Purple
Clearance
0.47
Suggested Index Terms
copper compression lug, 1hole, short barrel,90°
UL and CSA Voltage Rating
35kV
Tin-Plating Meets ASTM B545-97, Class C
320µ in (8µ m)
Tested by Telcordia-Meets NEBS Level 3
Yes
Burndy Die Index No.
15
Product Material
Copper
Product Name
Terminal Connector
Product Type
Terminal Connector
Connector Details
1 x Terminal
Connector Plating
Tin
Product Class
Wire Termination

Description

Copper Compression Lug, 1 Hole, 4/0 AWG, Short Barrel, 3/8 (9.5mm) Stud, 90° Bent
