  11. Copper Compression Lug, 1 Hole, #8 AWG F
This item is Discontinued.

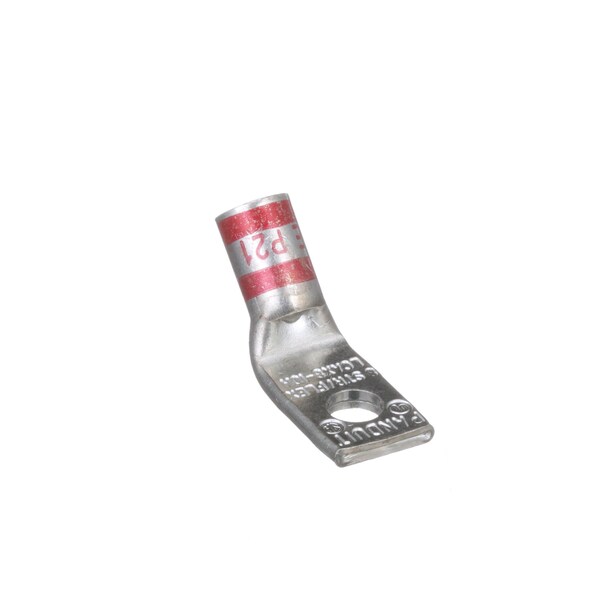

Panduit Copper Compression Lug, 1 Hole, #8 AWG F LCAX8-10H-L

Copper Compression Lug, 1 Hole, #8 AWG F (Discontinued)

  • Mfr # LCAX8-10H-L
  • Zoro # G2773315
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAX8-10H-L
Zoro #
G2773315
UPC #
7498343312
Country of Origin
Mexico

Dimensions

Overall Length
1 in
Length
1"
Class H Copper Flex Conductor Size (AWG)
8
Class K Copper Flex Conductor Size (AWG)
8
Tongue Width (In.)
0.41
Tongue Width (mm)
10.4
Barrel Length (mm)
10.7
Overall Length (mm)
25.4
Tongue Thickness (In.)
0.08
Wire Strip Length (mm)
12.7
Tongue Thickness (mm)
2
Barrel Length (In.)
0.42
Stud Hole Size (In.)
0.19
DLO Copper Flex Conductor Size (AWG)
8
Class G Copper Flex Conductor Size (AWG)
8
Class M Copper Flex Conductor Size (AWG)
8
Class I Copper Flex Conductor Size (AWG)
8
Stud Hole Size (mm)
4.8
Copper Code Conductor Size (AWG)
8
Overall Length (In.)
1

Description

Copper Compression Lug, 1 Hole, #8 AWG Flex, #10 (4.8mm) Stud, 45° Bent
