  11. Copper Compression Lug, 2 Hole, No 2 AWG, 1/4 (6.4mm) Stud, LCC2-14AH-Q
This item is Discontinued.

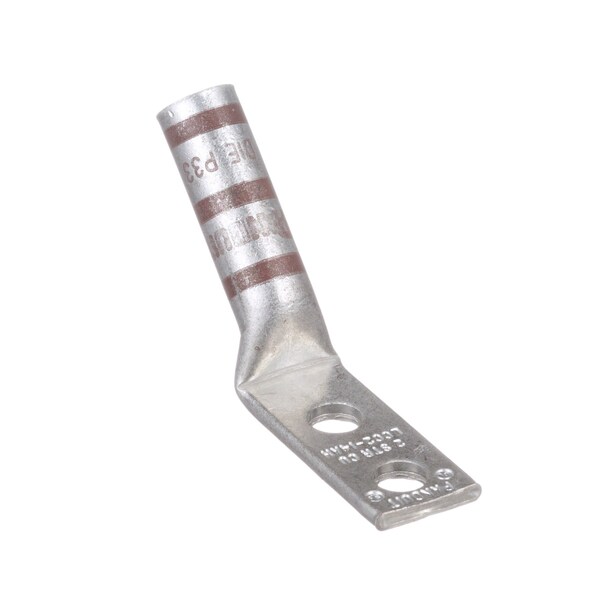

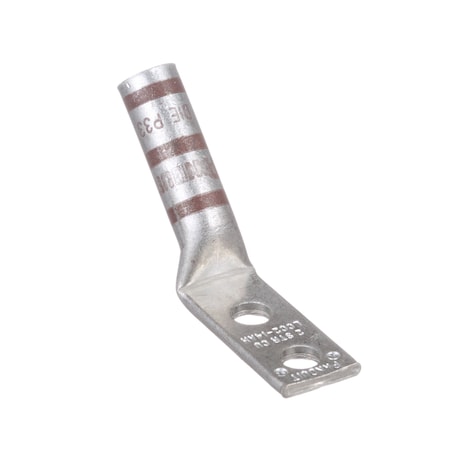

Panduit Copper Compression Lug, 2 Hole, No 2 AWG, 1/4 (6.4mm) Stud, LCC2-14AH-Q LCC2-14AH-Q

Copper Compression Lug, 2 Hole, No 2 AWG, 1/4 (6.4mm) Stud, LCC2-14AH-Q (Discontinued)

  • Mfr # LCC2-14AH-Q
  • Zoro # G2783359
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCC2-14AH-Q
Zoro #
G2783359
UPC #
7498390014
Country of Origin
Mexico

Dimensions

Length
2.4"
Overall Length
2.38 in
Tongue Width (In.)
0.6
Barrel Length (mm)
29.5
Tongue Thickness (In.)
0.1
Tongue Thickness (mm)
2.5
Wire Strip Length (In.)
1.25
Stud Hole Size (In.)
44930
Overall Length (mm)
60.5
Stud Hole Size (mm)
6.4
Overall Length (In.)
2.38
Wire Strip Length (mm)
31.8
Copper Code Conductor Size (AWG)
2
Tongue Width (mm)
15.2
Barrel Length (In.)
1.16

Details

Color Code
Brown
Features
Corrosion Resistant, 45° Angled Connector
Finish/Coating
Tin-Plated
Base Material
Copper
Stud Hole Spacing (In.)
0.63
UL Temperature Rating (°C)
90
Maximum Voltage (kV)
35
Barrel Type
Long Barrel Length without Inspection Window
Tongue Type
Standard
Product Type
Copper Compression Connectors - Lugs
Panduit Die Index Number
P33
Burndy Die Index Number
10
Stud Hole Spacing (mm)
16
Product Material
Copper
Connector Details
1 x Terminal
Connector Plating
Tin
Product Name
Terminal Connector
Product Class
Wire Termination

Description

Copper Compression Lug, 2 Hole, #2 AWG, 1/4 (6.4mm) Stud, 45° Bent
