  11. Copper Patch Cord, Category 5E, Blue

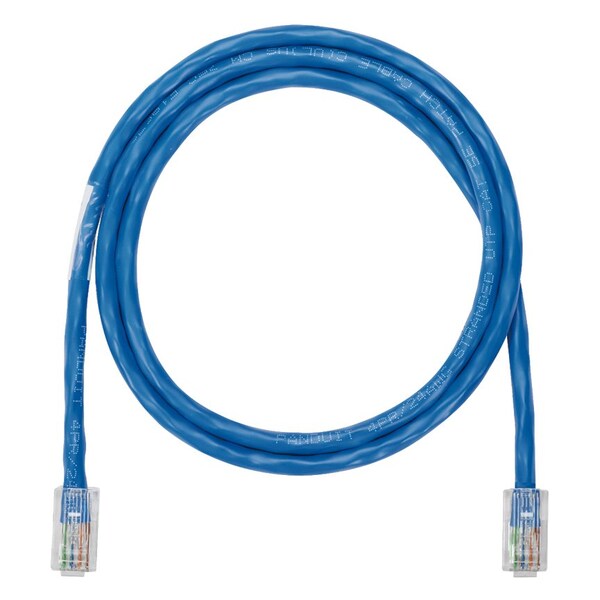

Panduit Copper Patch Cord, Category 5E, Blue NK5EPC3BUY - main

Copper Patch Cord, Category 5E, Blue

  • Mfr # NK5EPC3BUY

  • Zoro # G604858332

product price: $7.89
/ea
Sold in multiples of 2 for $15.78

Key Features

Connector Type - Patch Cord
Modular Plug
Boot Type - Data cable
No Boot
Length - Patch Cord
3 ft
Standards
Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
Wire Size
24 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NK5EPC3BUY
Zoro #
G604858332
UPC #
7498305523
Country of Origin
Costa Rica

Dimensions

Length - Patch Cord
3 ft
Wire Size
24 AWG
Outside Dia.
0.215
Conductor Size
24 AWG
Overall Length
3 ft
Outside Diameter Inches
0.21 in

Details

Connector Type - Patch Cord
Modular Plug
Boot Type - Data cable
No Boot
Standards
Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
Color
Blue
Material
Plug: Polycarbonate
Category - Data Cable
5e
Shielded
No
Jacket Material
Polyvinyl Chloride
Fire Rating - Data Cable
CM
Connector Type
Modular Plug
Shielding Type
U/UTP
Jacket Color
Blue
Temp. Range
14 to 140°F
Solid / Stranded
Stranded
Jacket Material - Wire and Cable
PVC (Polyvinyl Chloride)
Item - Data Cable
Patch Cord
Application
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Min Operating Temperature
-10 degrees celsius
Performance Level
Category 5e
Product Class
Patch Cords
Gauge
24

Description

The NetKey Cat 5e UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with modular plugs on both ends. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 3 feet in length and blue.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
