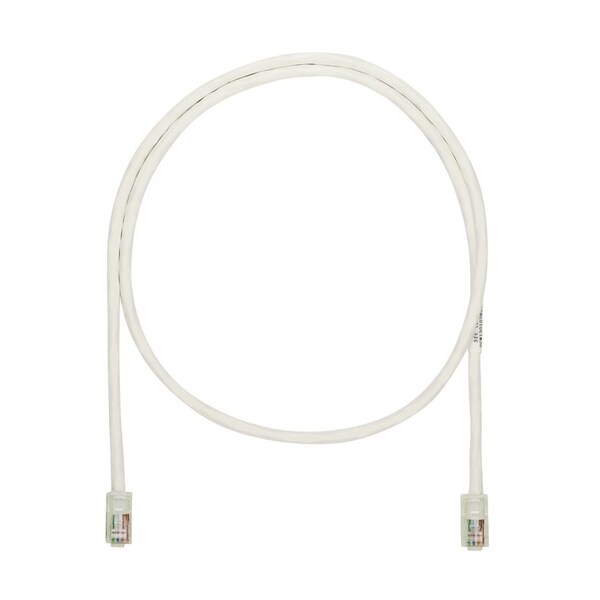

Panduit Copper Patch Cord, Category 5E, Off W (10 Pack), 10PK NK5EPC5Y - main

Copper Patch Cord, Category 5E, Off W (10 Pack), 10PK

  • Mfr # NK5EPC5Y

  • Zoro # G404858471

product price: $71.65
/pk 10, $7.17/ea

Key Features

Connector Type - Patch Cord
Modular Plug
Boot Type - Data cable
No Boot
Length - Patch Cord
5 ft
Standards
Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
Wire Size
24 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK5EPC5Y
Zoro #
G404858471
UPC #
7498305527
Country of Origin
Costa Rica

Dimensions

Length - Patch Cord
5 ft
Wire Size
24 AWG
Outside Dia.
0.215
Conductor Size
24 AWG
Overall Length
5 ft

Details

Connector Type - Patch Cord
Modular Plug
Boot Type - Data cable
No Boot
Standards
Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
Jacket Material - Wire and Cable
PVC (Polyvinyl Chloride)
Jacket Color
Off White
Color
White
Fire Rating - Data Cable
CM
Shielding Type
U/UTP
Temp. Range
14 to 140°F
Category - Data Cable
5e
Shielded
No
Jacket Material
Polyvinyl Chloride
Material
Plug: Polycarbonate
Connector Type
Modular Plug
Solid / Stranded
Stranded
Item - Data Cable
Patch Cord
Application
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Product Class
Copper Systems
Product Color
Off-White
Gauge
24
Min Operating Temperature
-10 degrees celsius
Performance Level
Category 5e
Max Operating Temperature
60 degrees celsius

Description

The NetKey Cat 5e UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with modular plugs on both ends. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 5 feet in length and off white.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
