  11. Copper Patch Cord, Category 6, Blue U
Panduit Copper Patch Cord, Category 6, Blue U NK6PC5BUY - main

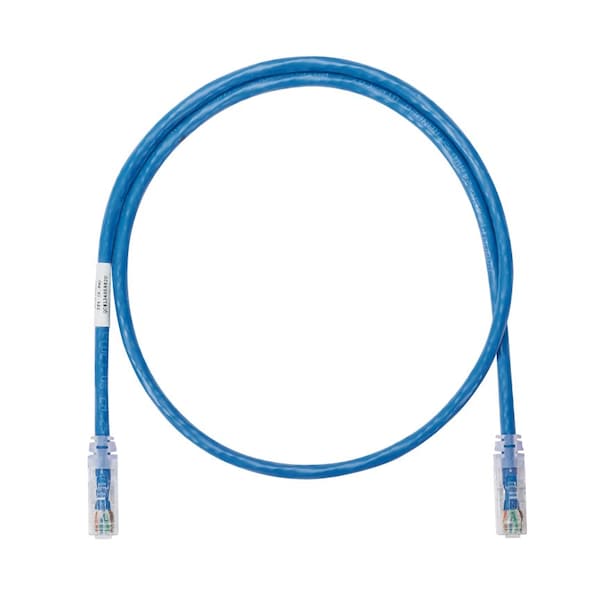

Copper Patch Cord, Category 6, Blue U

  • Mfr # NK6PC5BUY

  • Zoro # G704858355

product price: $9.99
/ea

Key Features

Connector Type - Patch Cord
Modular Plug
Boot Type - Data cable
Clear Boot
Length - Patch Cord
5 ft
Standards
Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements; Meets ANSI/TIA-568.2-D and ISO 11801 Category 6 component requirements; complies with ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); CE Compliant; RoHS Compliant
Wire Size
24 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK6PC5BUY
Zoro #
G704858355
UPC #
7498305565
Country of Origin
Costa Rica

Dimensions

Length - Patch Cord
5 ft
Wire Size
24 AWG
Outside Dia.
0.23
Conductor Size
24 AWG
Overall Length
5 ft
Outside Diameter Inches
0.23 in

Details

Connector Type - Patch Cord
Modular Plug
Boot Type - Data cable
Clear Boot
Standards
Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements; Meets ANSI/TIA-568.2-D and ISO 11801 Category 6 component requirements; complies with ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); CE Compliant; RoHS Compliant
Temp. Range
14 to 140°F
Color
Blue
Material
Plug: Polycarbonate
Shielded
No
Jacket Material
Polyvinyl Chloride
Item - Data Cable
NetKey Copper Patchcord
Jacket Material - Wire and Cable
PVC (Polyvinyl Chloride)
Shielding Type
U/UTP
Solid / Stranded
Stranded
Category - Data Cable
6
Fire Rating - Data Cable
CM
Connector Type
Modular Plug
Jacket Color
Blue
Application
Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP)
Min Operating Temperature
-10 degrees celsius
Product Class
Patch Cords
Performance Level
Category 6
Gauge
24
Boot Color
Clear
Max Operating Temperature
60 degrees celsius

Description

The NetKey Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 5 feet in length and blue.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
