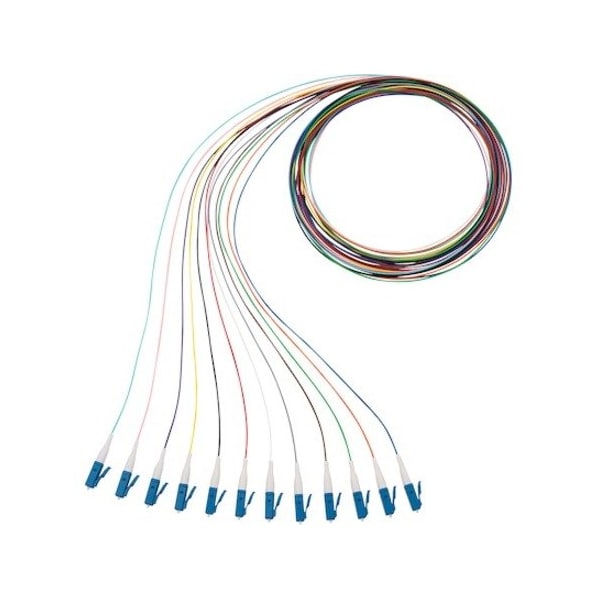

etKey 1-fiber OS2 LC to Pigtail, 900um Buffered Cable, 1 Meter (12-color

  • Mfr # NKFP91BN1NKM001

  • Zoro # G4016458


product price:  $150.99
/ea
Free Shipping & Returns

Key Features

Number of Fibers
1
Length
1 M : 3.28 FT.
Cable Length
3 ft
Features
Buffered
Application
Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NKFP91BN1NKM001
Zoro #
G4016458
UPC #
613056022430
Country of Origin
Unknown

Dimensions

Length
1 M : 3.28 FT.
Cable Length
3 ft
Overall Length (m)
1
Fiber Diameter (µm)
9
Overall Length (ft.)
3.2
Outer Diameter (mm)
1.6
Outer Diameter (In.)
0.03
Core/Cladding Diameter
9/125 µm

Details

Number of Fibers
1
Features
Buffered
Application
Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
Connector Type
LC - PIGTAIL
Environment
Indoor
Maximum Operating Temperature (°C)
60
Boot Color
Electric Ivory
Cable Color
Yellow
Minimum Connector Return Loss (dB)
50
Maximum Installation Temperature (°F)
140
Connector 1 Type
LC Simplex
Minimum Operating Temperature (°C)
-10
Fiber Type
OS2
Maximum Operating Temperature (°F)
140
Product Type
Network Cable
Connector 2 Type
SC Duplex
Resistance Properties
Flame-Resistant
Maximum Connector Insertion Loss (dB)
0.3
Minimum Installation Temperature (°C)
-10
Minimum Installation Temperature (°F)
14
Minimum Operating Temperature (°F)
14
Body Style
Duplex
Maximum Installation Temperature (°C)
60
Cable Characteristic
Patch Cable
Product Name
NetKey Fiber Optic Simplex Patch Network Cable
Cable Type
Fiber Optic
Connector on First End Details
1 x LC Network - Male
Fiber Optic Mode
Single-mode
Device Supported
Network Device
Product Line
NetKey
Connector Type on First End
LC Network - Male
Type
Pigtail

Description

etKey 1-fiber OS2 LC to Pigtail with 900um Buffered Cable, 1 Meter (12-color Pigtail Set)
