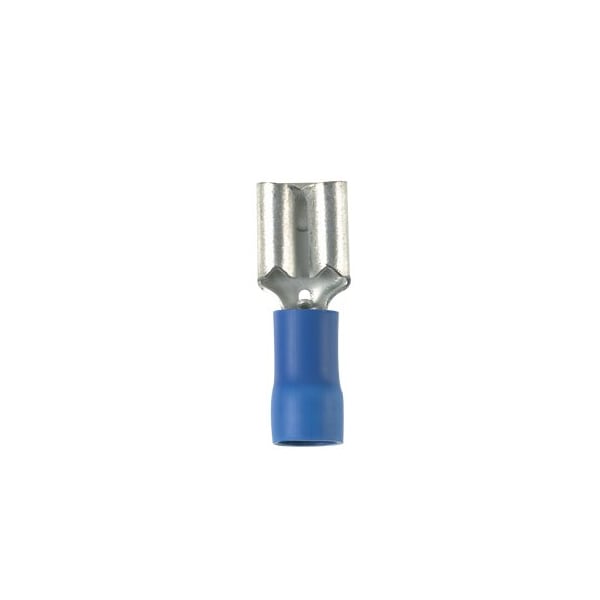

Panduit Fem. Disc., vinyl brl insul, 16 - 14 AWG DVF14-250-M - main

Fem. Disc., vinyl brl insul, 16 - 14 AWG

  • Mfr # DVF14-250-M

  • Zoro # G2855958

product price: $329.99
/pk 1000, $0.33/ea
Free Shipping & Returns

Key Features

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Blue
Insulation Type
Barrel Insulated
Overall Length
0.81 in
Features
Flame Retardant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DVF14-250-M
Zoro #
G2855958
UPC #
7498382073
Country of Origin
Mexico

Dimensions

Overall Length
0.81 in
Height
0.12 in
Width
0.3"
Wire Strip Length (mm)
7.1
Overall Width (mm)
7.4
Overall Length (mm)
20.6
Wire Strip Length (In.)
11933
Overall Length (In.)
0.81
Maximum Wire Size (AWG)
#14
Maximum Metric Conductor Size (mm²)
2.5
Insulation Diameter (mm)
4.1
Insulation Diameter (In.)
0.16
Tab Size (mm)
6.3 x 0.8
Maximum Wire Insulation Diameter (mm)
4.1
Maximum Copper Conductor Size (AWG)
#14
Minimum Copper Conductor Size (AWG)
#16
Minimum Metric Conductor Size (mm²)
1.5
Overall Height (mm)
3
Overall Height (In.)
0.12
Maximum Wire Insulation Diameter (In.)
0.16
Tab Size (In.)
0.250 x 0.032
Minimum Wire Size (AWG)
#16
Overall Width (In.)
0.29
Overall Thickness (mm)
0.4
Overall Thickness (In.)
0.16

Details

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Blue
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Base Material
Brass
Tongue Angle
Straight
Maximum Operating Temperature (°C)
90
Barrel Type
Funnel
Maximum Voltage (V)
300
Insulation Material
Vinyl
Product Type
Disconnect
Maximum Voltage (kV)
0.3
Minimum Voltage (kV)
0.3
Finish/Coating
Tin-Plated
Maximum Operating Temperature (°F)
194
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Minimum Voltage (V ac)
300
Flammability Rating
UL94V-0
Disconnect Type
Female Disconnect
Minimum Voltage (V)
300
Product Color
Blue
Product Material
Copper
Contact Plating
Tin
Connector Details
1 x Quick Disconnect
Product Name
Terminal Connector
Max Operating Temperature
90 degrees celsius
Product Class
Wire Termination

Description

Fem. Disc., vinyl brl insul, 16 - 14 AWG, .250 x .032 tab size, funnel entry

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
