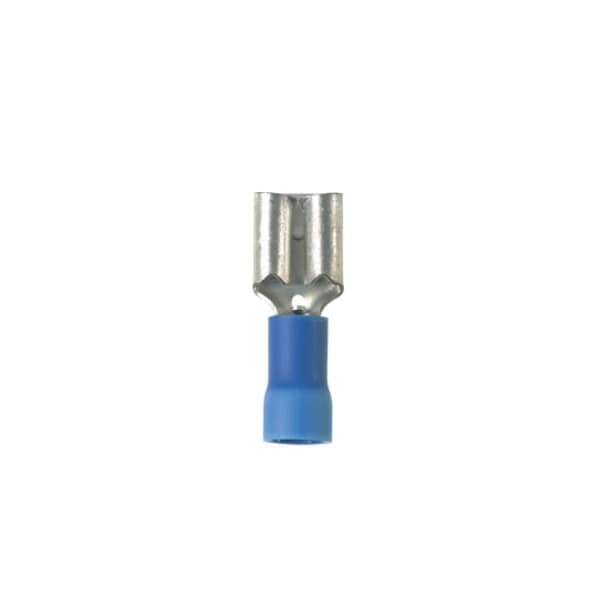

Female Disconnect, 0.81 in., PK1000

  • Mfr # DV14-250B-M

  • Zoro # G0674646

product price:
$
199.99
/pk of 1000, $0.20/ea
Free Shipping & Returns

Key Features

Insulation
Full
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Vinyl
Connection Type
Crimp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DV14-250B-M
Zoro #
G0674646
UPC #
7498382551
Country of Origin
Mexico

Dimensions

Tab Size
0.250 in x 0.032 in
Overall Length
0.81 in
Height
0.12 in
Width
0.3"
Overall Height (mm)
3
Overall Height (In.)
0.12
Minimum Wire Size (AWG)
#16
Overall Length (In.)
0.81
Maximum Wire Insulation Diameter (In.)
0.17
Minimum Metric Conductor Size (mm²)
1.5
Wire Strip Length (In.)
44930
Tab Size (In.)
0.250 x 0.032
Overall Length (mm)
20.6
Maximum Wire Insulation Diameter (mm)
4.3
Overall Width (In.)
0.29
Maximum Wire Size (AWG)
#14
Maximum Copper Conductor Size (AWG)
#14
Maximum Metric Conductor Size (mm²)
2.5
Overall Width (mm)
7.4
Tab Size (mm)
6.3 x 0.8
Wire Strip Length (mm)
6.3

Details

Item
Female Disconnect
Insulation
Full
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Vinyl
Connection Type
Crimp
Wire Range
16 to 14 AWG
Seam
Butted
Max. Temp.
221 Degrees F
Max. Voltage
600 V
Connection Material
Tin-Plated Brass
Standards
CSA22.2 No. 153, UL 310 Recognized
Features
Flame Retardant
Finish
Tinned
Maximum Voltage (kV)
0.6
Insulation Material
Vinyl
Finish/Coating
Tin-Plated
Maximum Operating Temperature (°C)
105
Maximum Operating Temperature (°F)
221
Barrel Type
Funnel
Product Type
Disconnect
Flammability Rating
UL94V-0
Standards Met
UL 310, CSA 22.2 No.153
Maximum Voltage (V)
600
Tongue Angle
Straight
Base Material
Brass
Disconnect Type
Female Disconnect
Product Color
Blue
Contact Plating
Tin
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Max Operating Temperature
105 degrees celsius
Product Class
Disconnects

Description

Female Disconnect, Insulation Full, Insulation Type Vinyl, Wire Range 16 to 14 AWG, Tab Size 0.250 in x 0.032 in, Max. Temp. 221 Degrees F, Max. Voltage 600 V, Overall Length 0.81 in, Seam Butted, Connection Material Tin Plated Brass, Standards CSA22.2 No. 153, UL 310 Recognized, Connection Type Crimp, Package Quantity 1000
