  11. Female Disconnect, non-insulated, 22 - 1

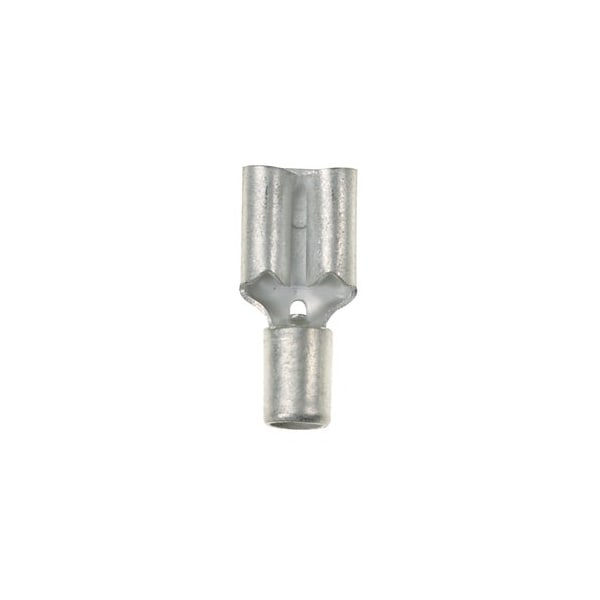

Panduit Female Disconnect, non-insulated, 22 - 1 D18-250-M - main

Female Disconnect, non-insulated, 22 - 1

  • Mfr # D18-250-M

  • Zoro # G2854935

product price: $209.99
/pk 1000, $0.21/ea
Free Shipping & Returns

Key Features

For Use With
CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Overall Length
0.12 in
Finish
Tinned
Height
0.66 in
Width
0.3"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D18-250-M
Zoro #
G2854935
UPC #
7498382201
Country of Origin
Mexico

Dimensions

Overall Length
0.12 in
Height
0.66 in
Width
0.3"
Minimum Metric Conductor Size (mm²)
0.5
Wire Strip Length (In.)
11933
Minimum Wire Size (AWG)
#22
Wire Strip Length (mm)
7.1
Overall Width (mm)
7.6
Overall Thickness (In.)
0.16
Tab Size (In.)
0.250 x 0.032
Overall Width (In.)
0.3
Overall Length (In.)
0.66
Overall Thickness (mm)
0.4
Overall Length (mm)
16.8
Maximum Copper Conductor Size (AWG)
#18
Maximum Wire Size (AWG)
#18
Tab Size (mm)
6.3 x 0.8
Minimum Copper Conductor Size (AWG)
#22
Maximum Metric Conductor Size (mm²)
1

Details

For Use With
CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Finish
Tinned
Maximum Operating Temperature (°F)
302
Maximum Operating Temperature (°C)
150
Disconnect Type
Female Disconnect
Insulation Material
Non-Insulated
Finish/Coating
Tin-Plated
Product Type
Disconnect
Base Material
Brass
Barrel Type
Standard
Standards Met
UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 , C22.2 No.153
Maximum Voltage (kV)
2
Tongue Angle
Straight
Maximum Voltage (V)
2000
Product Name
Terminal Connector
Product Material
Brass
Contact Plating
Tin, Nickel
Connector Details
1 x Quick Disconnect
Product Color
Metallic
Product Class
Disconnects

Description

Female Disconnect, non-insulated, 22 - 18 AWG, .250 x .032 tab size, sleeved barrel

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
