Shop PANDUIT

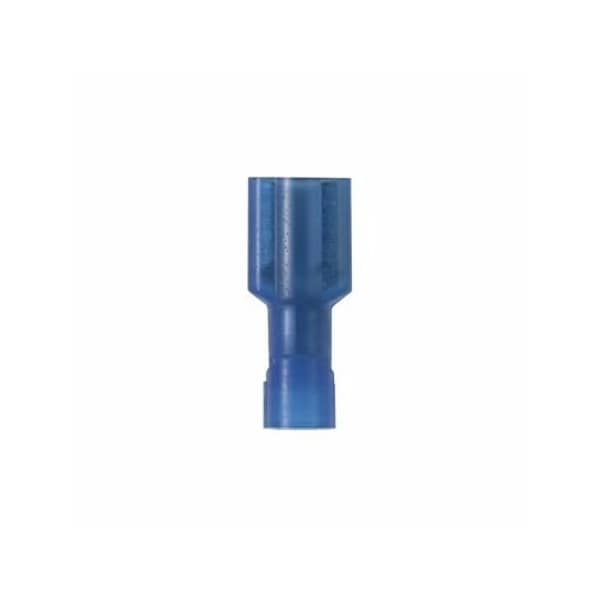

Female Disconnect, Nylon, 16-14AWG, PK100

  • Mfr # DNF14-205FIB-C
  • Zoro # G0765322
product price:
$
92.79
/pk of 100, $0.93/ea

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.84 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DNF14-205FIB-C
Zoro #
G0765322
UPC #
7498382669
Country of Origin
Mexico
Item
Female Disconnect,Nylon,16-14AWG,PK100
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Features
Flame Retardant
Finish
Tinned
Product Type
Disconnect
Barrel Type
Funnel
Flammability Rating
UL94-HB
Seam Type
Butted
Base Material
Brass
Disconnect Type
Female Disconnect
Maximum Operating Temperature (°F)
221
Maximum Voltage (V)
600
Maximum Voltage (kV)
0.6
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Insulation Material
Nylon
Maximum Operating Temperature (°C)
105
Finish/Coating
Tin-Plated
Tongue Angle
Straight
Contact Plating
Tin
Connector Details
1 x Quick Disconnect
Product Color
Blue
Product Name
Terminal Connector
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Dimensions

Overall Length
0.84 in
Width
0.3"
Height
0.22 in
Maximum Wire Size (AWG)
#14
Overall Length (mm)
19.8
Tab Size (In.)
0.205/0.187 x 0.032
Insulation Diameter (mm)
4.1
Insulation Diameter (In.)
0.16
Minimum Copper Conductor Size (AWG)
#16
Minimum Wire Size (AWG)
#16
Maximum Wire Insulation Diameter (mm)
4.1
Overall Length (In.)
0.78
Overall Width (mm)
8.9
Wire Strip Length (In.)
11933
Overall Width (In.)
0.35
Minimum Metric Conductor Size (mm²)
1.5
Wire Strip Length (mm)
7.1
Tab Size (mm)
5.2/4.8 x 0.8
Maximum Metric Conductor Size (mm²)
2.5
Maximum Copper Conductor Size (AWG)
#14
Maximum Wire Insulation Diameter (In.)
0.16

Description

Female Disconnect,Nylon,16-14AWG,PK100, Package Quantity 100
