Shop PANDUIT

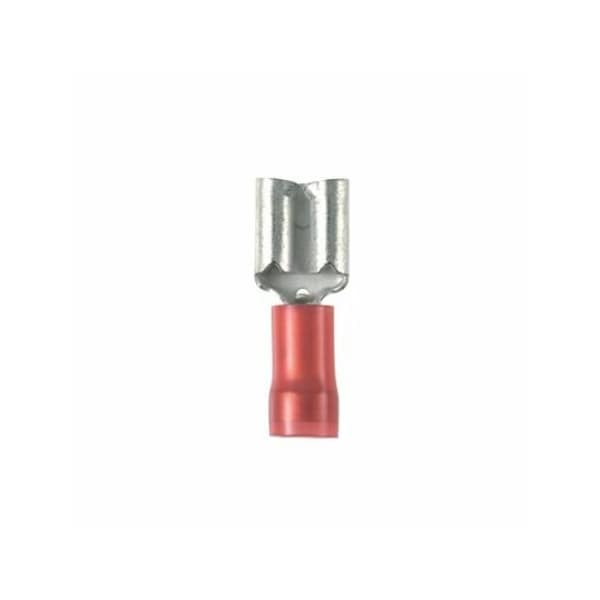

Female Disconnect, Nylon, 22-18AWG, PK100

  • Mfr # DNF18-188-C

  • Zoro # G0765541

product price:  $91.99
/pk 100, $0.92/ea

Key Features

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Red
Insulation Type
Barrel Insulated
Overall Length
0.76 in
Features
Flame Retardant
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DNF18-188-C
Zoro #
G0765541
UPC #
7498382700
Country of Origin
Mexico

Dimensions

Overall Length
0.76 in
Height
0.1 in
Width
0.2"
Maximum Wire Insulation Diameter (In.)
0.137
Wire Strip Length (In.)
11933
Minimum Copper Conductor Size (AWG)
#22
Maximum Wire Size (AWG)
#18
Minimum Metric Conductor Size (mm²)
0.5
Maximum Copper Conductor Size (AWG)
#18
Overall Length (In.)
0.76
Insulation Diameter (mm)
3.5
Overall Width (mm)
5.8
Maximum Wire Insulation Diameter (mm)
3.5
Overall Width (In.)
0.23
Tab Size (In.)
0.187 x 0.020
Insulation Diameter (In.)
0.14
Minimum Wire Size (AWG)
#22
Maximum Metric Conductor Size (mm²)
1
Tab Size (mm)
4.8 x 0.5
Overall Length (mm)
19.3
Wire Strip Length (mm)
7.1

Details

Item
Female Disconnect,Nylon,22-18AWG,PK100
For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Red
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Barrel Type
Funnel
Maximum Voltage (kV)
0.3
Disconnect Type
Female Disconnect
Finish/Coating
Tin-Plated
Insulation Material
Nylon
Maximum Operating Temperature (°F)
194
Maximum Voltage (V)
300
Product Type
Disconnect
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Base Material
Brass
Tongue Angle
Straight
Maximum Operating Temperature (°C)
90
Flammability Rating
UL94-HB
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Contact Plating
Tin
Product Color
Red
Product Class
Disconnects
Max Operating Temperature
90 degrees celsius

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 100

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
