  11. Female Disconnect, Nylon, 22-18AWG, PK100
This item is Discontinued.

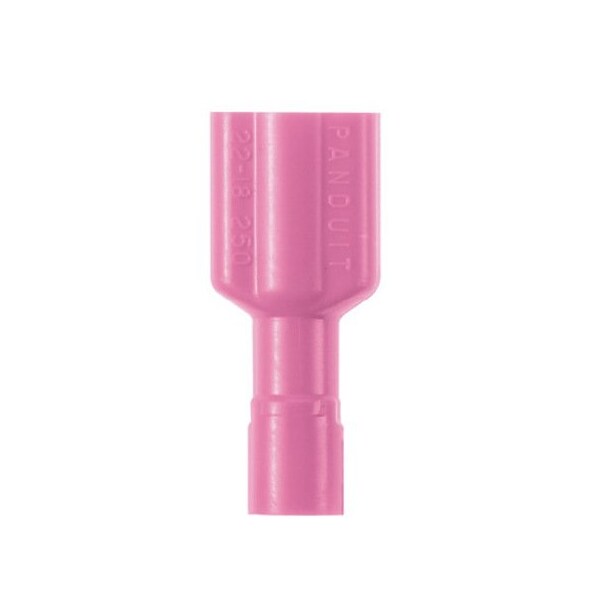

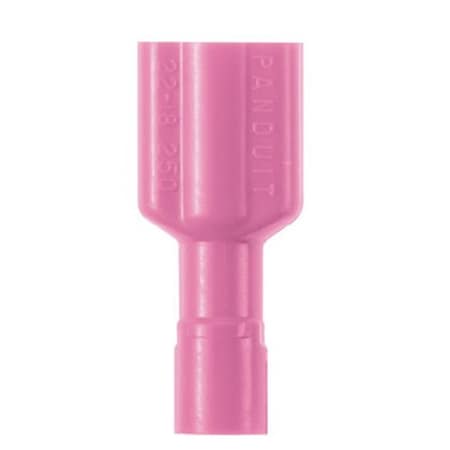

Panduit Female Disconnect, Nylon, 22-18AWG, PK100 DPF18-250FIB-C

Female Disconnect, Nylon, 22-18AWG, PK100 (Discontinued)

  • Mfr # DPF18-250FIB-C
  • Zoro # G0765943
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPF18-250FIB-C
Zoro #
G0765943
UPC #
7498320378
Country of Origin
Mexico

Dimensions

Height (In.)
0.22
Length In (mm)
0.84 (21.3)
Width (In.)
0.35
Max. Insulation Diameter In. (mm)
0.133 (3.4)
Tab Size (In.)
0.250 x 0.032
Width In (mm)
0.35 (8.9)
Tab Size (mm)
6.3 x 0.8
Height (mm)
5.6
Tab Size In. (mm)
0.250 x 0.032 (6.3 x 0.8)
Wire Strip Length In. (mm)
9/32" (.2812) (7.1)
Length (mm)
21.3
Width (mm)
8.9
Length (In.)
0.84

Details

Item
Female Disconnect,Nylon,22-18AWG,PK100
Style
Female Disconnect
Insulation
Premium Nylon - Fully Insulated
Wire Range
22 - 18 AWG
Standards
UL 310 Listed
Flammability Rating
V2
Max. Ins.
0.133
Max. Voltage Rating
600V
Plating Type
Tinned
Max. Ins. (mm)
3.4
CSA Certified
C22.2 No.153
Base Material
Brass
Tool
CT-600-A, CT-1525, CT-2500
Model (Design)
Sleeve
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Fully Insulated
Wire Range (mm²)
0.5 - 1.0
Panduit Color Code
Red
UL Listed
Yes
Wire Range In. (mm²)
22 - 18 AWG (0.5 - 1.0)
Barrel Configuration
Funnel Entry
Barrel Type
Butted Seam

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 100
