  11. Female Disconnect, Nylon, 22-18AWG, PK1000

This item is Discontinued.

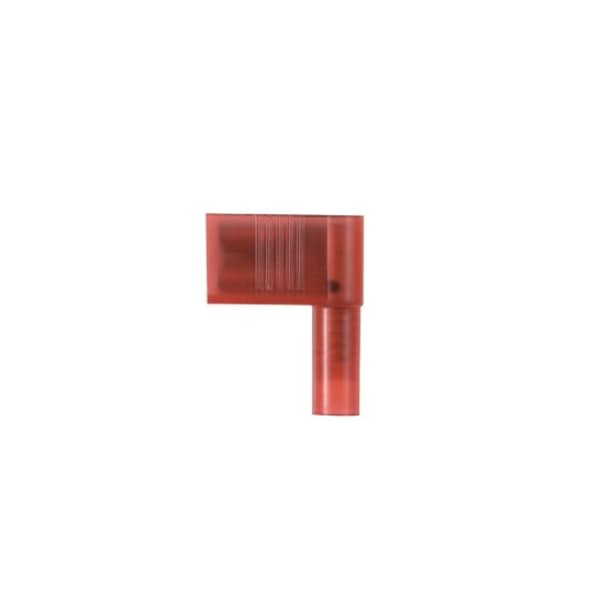

Panduit Female Disconnect, Nylon, 22-18AWG, PK1000 DNFR18-250B-M

Female Disconnect, Nylon, 22-18AWG, PK1000 (Discontinued)

  • Mfr # DNFR18-250B-M
  • Zoro # G0765821
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNFR18-250B-M
Zoro #
G0765821
UPC #
7498382659
Country of Origin
Mexico

Dimensions

Overall Length
0.78 in
Width
0.4"
Overall Height (mm)
5.1
Minimum Metric Conductor Size (mm²)
0.5
Overall Width (mm)
15.7
Tab Size (mm)
6.3 x 0.8
Maximum Wire Size (AWG)
#18
Tab Size (In.)
0.250 x 0.032
Maximum Copper Conductor Size (AWG)
#18
Wire Strip Length (mm)
7.1
Wire Strip Length (In.)
11933
Maximum Metric Conductor Size (mm²)
1
Maximum Wire Insulation Diameter (mm)
3.3
Overall Length (In.)
0.62
Overall Width (In.)
0.62
Overall Length (mm)
15.7
Minimum Wire Size (AWG)
#22
Overall Height (In.)
0.2
Maximum Wire Insulation Diameter (In.)
0.13
Depth
0.62 in

Details

Item
Female Disconnect,Nylon,22-18AWG,PK1000
For Use With
CT-300-1
Color Code
Red
Insulation Type
Fully Insulated
Features
Right-angled Connector, Flame Retardant
Finish
Tinned
Maximum Voltage (kV)
0.6
Disconnect Type
Female Disconnect-Right Angle
Maximum Voltage (V)
600
Product Type
Disconnect
Base Material
Brass
Flammability Rating
UL94-HB
Barrel Type
Funnel
Finish/Coating
Tin-Plated
Standards Met
UL 310, CSA 22.2 No.153
Insulation Material
Nylon
Maximum Operating Temperature (°C)
105
Maximum Operating Temperature (°F)
221
Tongue Angle
Right Angle
Contact Plating
Tin
Connector Details
1 x Quick Disconnect
Product Name
Terminal Connector
Product Color
Red
Product Material
Brass
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 1000
