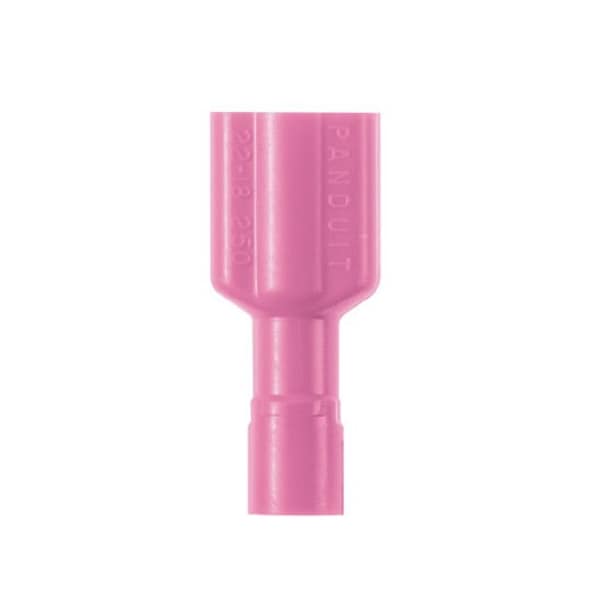

Female Disconnect, Nylon, 22-18AWG, PK1000

  • Mfr # DPF18-250FIB-M
  • Zoro # G0765998
product price:
$
334.99
/pk of 1000, $0.33/ea
Free Shipping & Returns

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.84 in
Features
Strain Relief, Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DPF18-250FIB-M
Zoro #
G0765998
UPC #
7498320393
Country of Origin
Mexico

Dimensions

Overall Length
0.84 in
Width
0.4"
Height
0.22 in
Overall Height (mm)
5.6
Overall Width (mm)
8.9
Wire Strip Length (mm)
7.1
Maximum Wire Insulation Diameter (mm)
3.38
Overall Length (In.)
0.84
Maximum Copper Conductor Size (AWG)
#18
Overall Width (In.)
0.35
Maximum Metric Conductor Size (mm²)
1
Overall Length (mm)
21.3
Maximum Wire Insulation Diameter (In.)
0.133
Overall Height (In.)
0.22
Minimum Wire Size (AWG)
#22
Tab Size (In.)
0.250 x 0.032
Tab Size (mm)
6.3 x 0.8
Minimum Metric Conductor Size (mm²)
0.5
Maximum Wire Size (AWG)
#18
Wire Strip Length (In.)
11933

Details

Item
Female Disconnect,Nylon,22-18AWG,PK1000
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Features
Strain Relief, Flame Retardant
Finish
Tinned
Maximum Operating Temperature (°F)
221
Product Type
Disconnect
Disconnect Type
Female Disconnect
Flammability Rating
UL94V-2/UL94-HB
Maximum Voltage (V)
600
Barrel Type
Funnel
Insulation Material
Premium Nylon
Finish/Coating
Tin-Plated
Base Material
Brass
Tongue Angle
Straight
Maximum Operating Temperature (°C)
105
Maximum Voltage (kV)
0.6
Standards Met
UL 310, CSA 22.2 No.153
Product Name
DiscoGrip Terminal Connector
Product Material
Brass
Product Color
Red
Connector Details
1 x Quick Disconnect
Product Line
DiscoGrip
Contact Plating
Tin
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 1000
